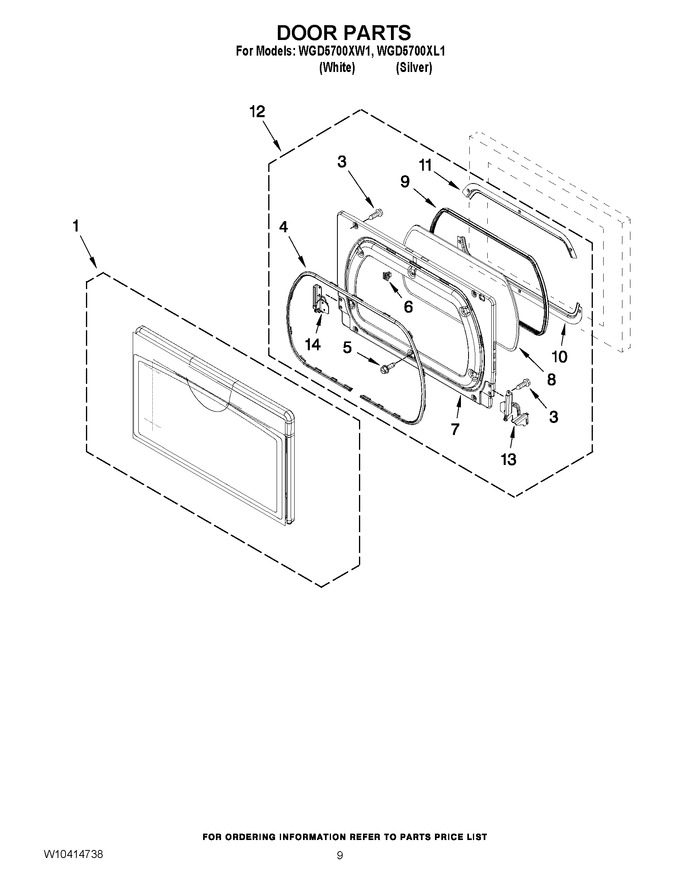

04 - W10293911 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10284142		Outer Door Assembly (silver)		Appelez-nous	-
1	W10284124		Outer Door Assembly (white)		Appelez-nous	-
3	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
4	WPW10354795		Seal, Door   (Replaces: W10284123)				$ 130.12
5	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52
6	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
7	W10284133		Door, Inner		Appelez-nous	-
8	WPW10284121		Door, Glass   (Replaces: W10284121)				$ 263.61
9	W11676508		Seal, Window   (Replaces: W10284122)				$ 28.37
10	W10284120		Retainer, Lower Glass		Appelez-nous	-
11	W10284119		Retainer, Upper, Glass		Appelez-nous	-
12	W11376676		Door Inner Assembly   (Replaces: W10284179)		Appelez-nous	-
13	W11371722		Hinge, Door (r.h.)   (Replaces: W10284141)				$ 106.42
14	W11376139		Hinge, Door (l.h.)   (Replaces: W10284140)				$ 106.42
