SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts

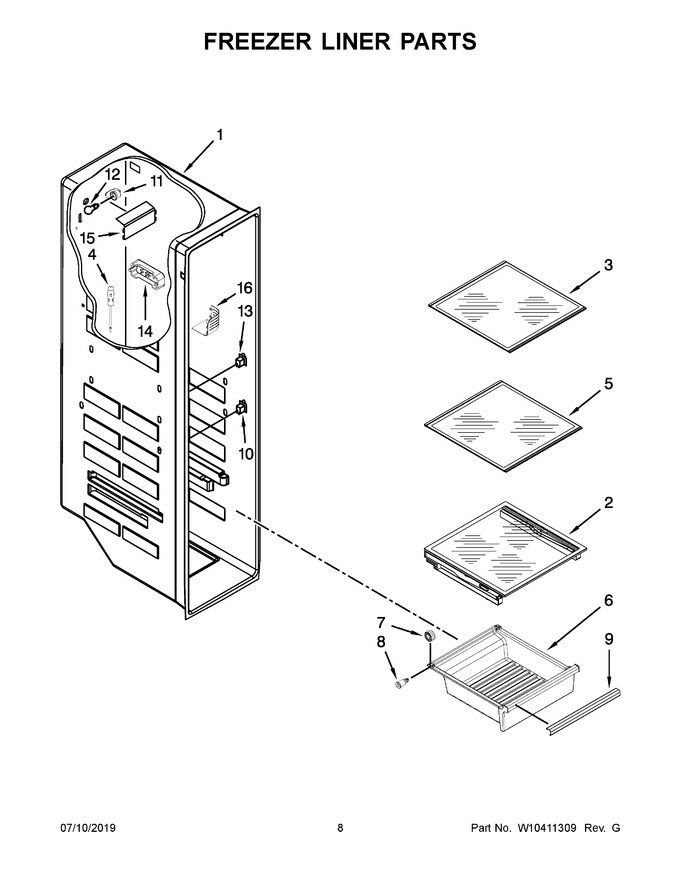

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	WPW10269181		Assembly, Cover   (Replaces: W10269181)				$ 266.97
3	W10238483		Shelf, Glass Upper		Appelez-nous	-
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	W10269145		Shelf, Glass Lower				$ 107.30
6	WPW10260985		Pan, Freezer   (Replaces: W10260985)				$ 156.89
7	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 15.74
8	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 17.90
9	W11236850		Trim, Handle   (Replaces: W11034724)		Appelez-nous	-
10	W11396033		Switch, Light   (Replaces: W10847849)			Immediately	$ 37.30
11	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
12	W11679940		Bulb, Light   (Replaces: 2311792)			Immediately	$ 11.30
13	W11123943		Switch, Rocker Arm   (Replaces: W11032814)				$ 36.66
14	WPW10425252		Cover, Thermistor   (Replaces: W10425252)			Immediately	$ 88.38
15	WPW10269101		Lens   (Replaces: W10269101)				$ 107.45
16	W10260382		Cover, Light				$ 80.58

    View Diagram in Separate Window       Print Part List
