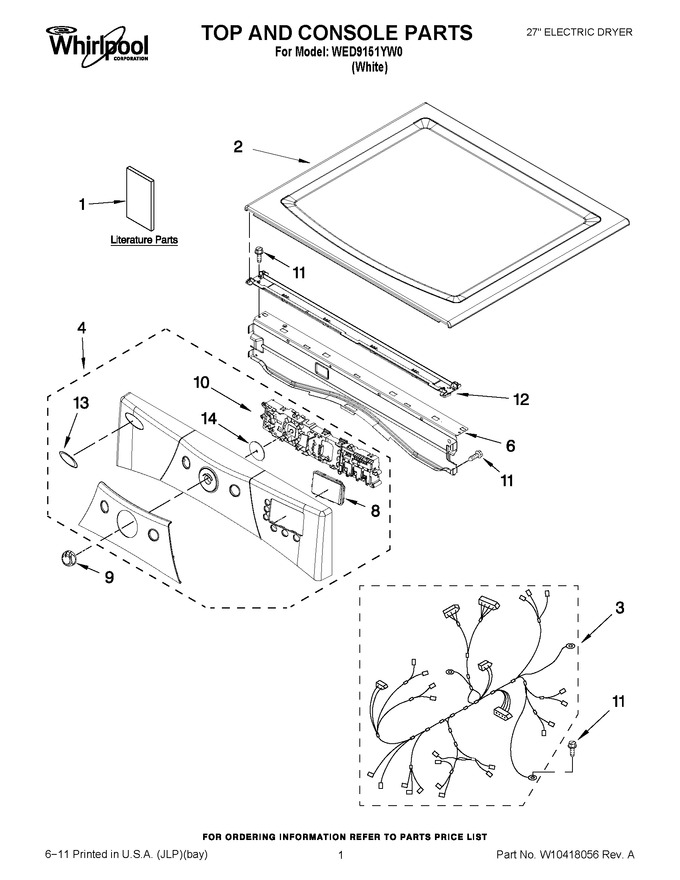

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10385103 | Installation Guide |
|
- | |||||
| 1 | W10385092 | Use & Care Guide |
|
- | |||||
| 1 | W10386307 | Tech Sheet |
|
- | |||||
| 2 | WPW10336080 | Top (Replaces: W10336080) |
|
$ 331.99 | |||||
| 3 | W10251442 | Harness, Main |
|
- | |||||
| 4 | W10380697 | Panel, Console |
|
$ 437.12 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 8 | W10212742 | Window, Led |
|
$ 22.30 | |||||
| 9 | WPW10416463 | Knob Assembly (Replaces: W10370331) |
|
$ 61.58 | |||||
| 10 | W10387226 | Assembly, User Interface |
|
$ 235.47 | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | WPW10266747 | Chanel, Water (Replaces: W10266747) |
|
$ 73.96 | |||||
| 13 | W10117943 | Badge Assembly |
|
- | |||||
| 14 | 8572039 | Seal, Ui |
|
- |
