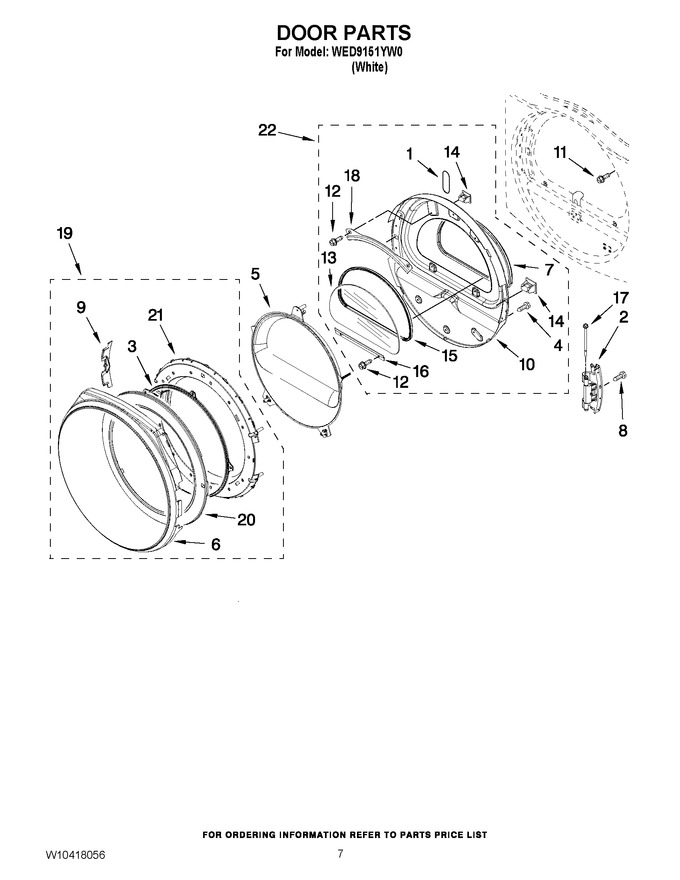

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10256915		Label-hinge Hole Cover   (Replaces: W10256915)				$ 82.07
2	WPW10304672		Door, Hinge Assembly   (Replaces: 8578887)			Immediately	$ 232.48
3	W10215741		Screen, Door (not Serviceable Sperately, Order Item. 19 )		Appelez-nous	-
4	W11116979		Screw,8-18 X 1/2   (Replaces: 8534044)				$ 13.76
5	W10371560		Door, Intermediate Stationary		Appelez-nous	-
6	W10371558		Door Trim Outer Ring		Appelez-nous	-
7	WPW10163915		Door Seal   (Replaces: W10163915)			Immediately	$ 132.71
8	WPW10159996		Screw   (Replaces: W10159996)				$ 8.52
9	W10215766		Door Trim, Hinge Cover				$ 26.09
10	W11690171		Door Assembly   (Replaces: W10363674)				$ 204.49
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52
13	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
15	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
16	W10822054		Retainer (lower)   (Replaces: 8519354)			Immediately	$ 18.01
17	8565087		Nut, 1/4-28		Appelez-nous	-
18	8519356		Retainer (upper)		Appelez-nous	-
19	W10371557		Door Assembly (outer)				$ 237.01
20	N/P		Door Trim (inner Ring) (not Serviceable Seperately, Order Item. 19 )		Appelez-nous	-
21	W10215762		Door Intermediate Rotational		Appelez-nous	-
22	W10270216		Door Assembly Inner				$ 141.94
