SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

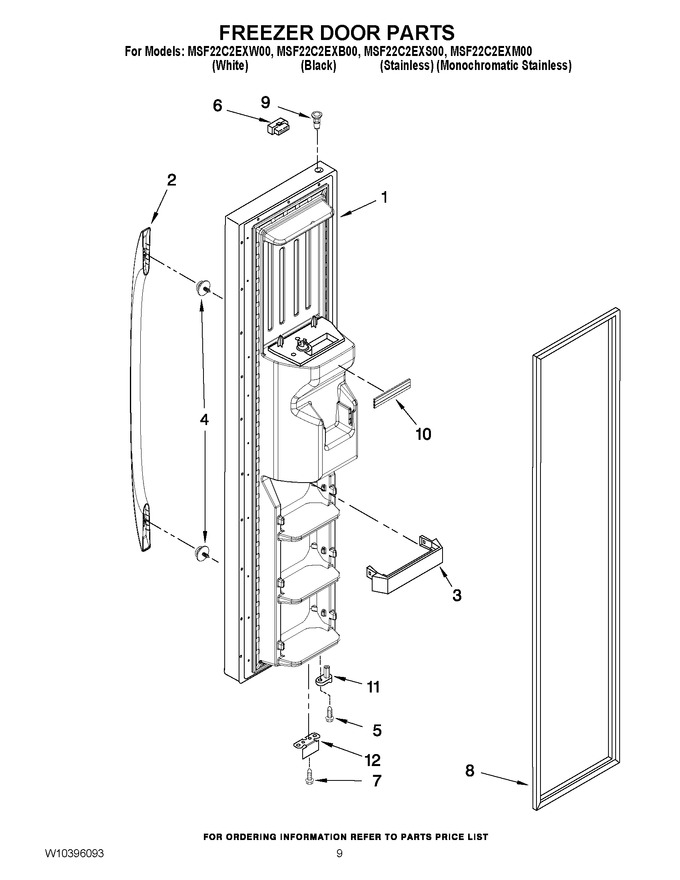

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10360655		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10360656		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10360661		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
1	W10360654		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	WPW10170743		Handle (stainless)   (Replaces: W10170743)				$ 365.52
2	W10296254		Handle (white)		Appelez-nous	-
2	W10296255		Handle (black)		Appelez-nous	-
2	WPW10170739		Handle (antique Steel)   (Replaces: W10170739)				$ 363.92
3	WP2309717		Trivet   (Replaces: 2309717)				$ 58.64
4	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
5	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
6	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
7	WP489483		Screw   (Replaces: 489420)				$ 11.41
8	2159072		Door Gasket, Magnetic (white)   (Replaces: 2309604)				$ 323.60
8	W10136733		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327162)				$ 358.98
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2309654)				$ 325.91
9	WP2182181		Thimble-top   (Replaces: 2182181)				$ 8.15
10	WPW10307490		Trim, Door Shelf   (Replaces: W10307492)			Immediately	$ 24.27
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
12	W10185567		Bracket, Door Stop (black)		Appelez-nous	-
12	W10185566		Bracket, Door Stop (silver)		Appelez-nous	-
