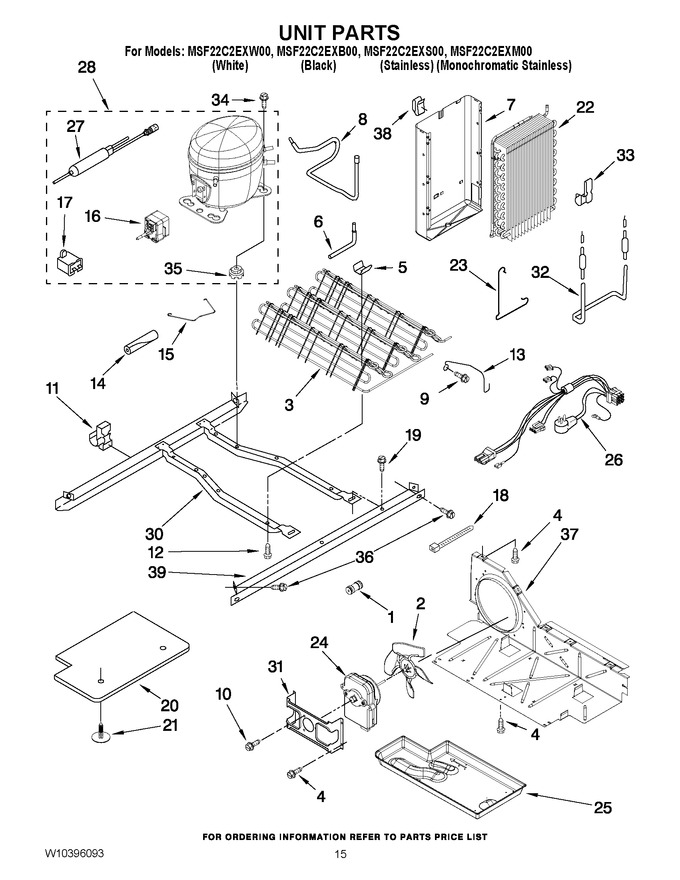

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10334458 | Connector (Replaces: W10334458) |
|
$ 22.67 | |||||
| 2 | W11458267 | Fan, Blade (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10222349) |
|
$ 323.45 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 19.38 | |||||
| 6 | 2325479 | Tube, Condenser To Heat Loop |
|
- | |||||
| 7 | WPW10194474 | Heat Shield And Drain Pan (Replaces: W10194474) |
|
$ 125.51 | |||||
| 8 | 2220642 | Tube Suction |
|
$ 232.67 | |||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 10 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 11 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 12 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 13 | 2260516 | Guard, Fan |
|
- | |||||
| 14 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 15 | W11661170 | Clip, Retaining (Replaces: W10174384) |
|
Immediately | $ 11.87 | ||||
| 16 | WP2188831 | Start-device, Combination (start Relay And Overload) (service) (Replaces: 2188831) |
|
$ 186.35 | |||||
| 17 | WP65889-4 | Capacitor (production) (Replaces: 2252799) |
|
Immediately | $ 61.14 | ||||
| 17 | WP65889-4 | Capacitor (service) (Replaces: 2255130) |
|
Immediately | $ 61.14 | ||||
| 18 | WPW10339879 | Wire Tie (Replaces: 2263990) |
|
$ 8.30 | |||||
| 19 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 20 | W11115203 | Unit Cover Bottom (Replaces: 2304898) |
|
$ 543.81 | |||||
| 21 | 489396 | Clip |
|
$ 11.26 | |||||
| 22 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 356.84 | ||||
| 23 | 2161324 | Clip |
|
- | |||||
| 24 | W10124096 | Motor, Fan (Replaces: W10204250) |
|
Immediately | $ 112.20 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 26 | WPW10309395 | Harness, Unit (Replaces: W10309395) |
|
$ 308.35 | |||||
| 27 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 27 | WPW10143759 | Drier (production) (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 28 | W10355489 | Compressor (includes Items 16, 17, 27, & 35) (also Order 876765 Tube Kit) (Replaces: W10144769) |
|
$ 678.50 | |||||
| 30 | 2304903 | Unit Mounting Frame |
|
$ 244.68 | |||||
| 31 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 12.93 | |||||
| 32 | WP2323197 | Heater, Defrost (Replaces: 2188174) |
|
Immediately | $ 123.25 | ||||
| 33 | 2161324 | Clip, Heater |
|
- | |||||
| 34 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 35 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 35 | W11661108 | Grommet (4) (service) (Replaces: 2183042) |
|
$ 15.21 | |||||
| 36 | 489340 | Screw |
|
- | |||||
| 37 | W10332806 | Air Baffle |
|
$ 102.82 | |||||
| 38 | 2155547 | Clip, Heat |
|
- | |||||
| 39 | W10207512 | Unit Mounting Rail |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (r134a) |
|
- |
