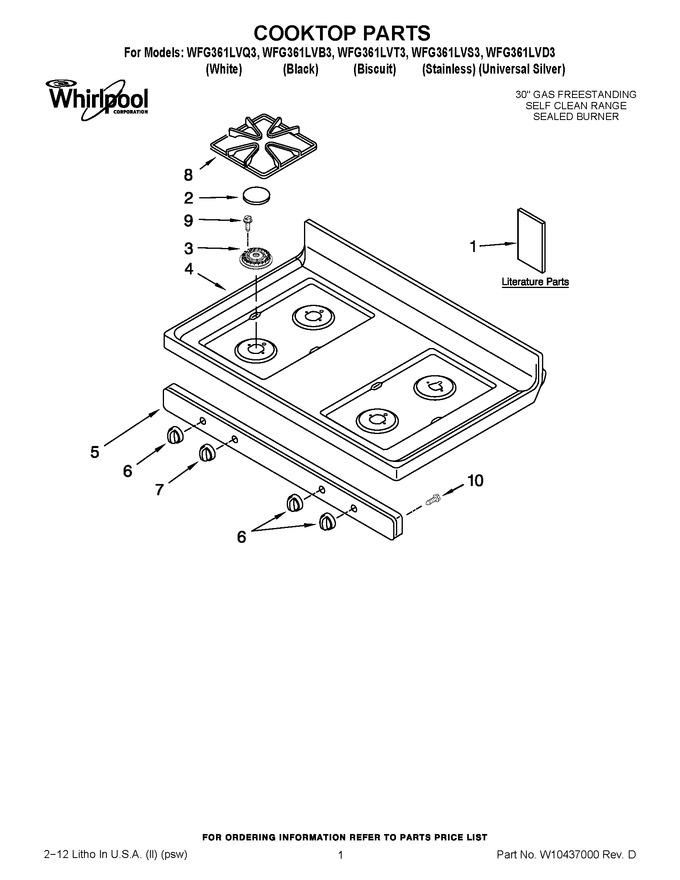

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10196153 | Owners Manual |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Anti-tip Template (english/french) |
|
- | |||||
| 1 | W10413012 | Installation Instructions |
|
- | |||||
| 1 | W10357517 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | WPW10170554 | Set, Burner Cap (black) (Replaces: W10170554) |
|
$ 140.26 | |||||
| 2 | WPW10165809 | Set, Burner Cap (wetstone) (Replaces: W10165809) |
|
$ 138.32 | |||||
| 3 | WPW10406243 | Burner (r.rear) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 3 | WPW10406283 | Burner (r. Front, L. Rear) (Replaces: W10194076) |
|
$ 78.02 | |||||
| 3 | WPW10406797 | Burner (l.front) (Replaces: 8286182) |
|
$ 92.91 | |||||
| 4 | 8272253 | Cooktop (black) |
|
- | |||||
| 4 | 8272251 | Cooktop (white) |
|
- | |||||
| 4 | 8195546 | Cooktop (biscuit) (Replaces: 8272743) |
|
- | |||||
| 5 | WP8523854 | Panel, Manifold (white) (Replaces: 8523854) |
|
$ 290.58 | |||||
| 5 | 8523855 | Panel, Manifold (blk/ss/u.silver) |
|
$ 176.18 | |||||
| 5 | 8523856 | Panel, Manifold (biscuit) |
|
- | |||||
| 6 | WP8273104 | Knob, Control (white) (Replaces: 8273104) |
|
Immediately | $ 17.99 | ||||
| 6 | WP8273106 | Knob, Control (biscuit) (Replaces: 8273106) |
|
$ 19.55 | |||||
| 6 | WP8273103 | Knob, Control (blk/ss/u.silver) (Replaces: 8273103) |
|
Immediately | $ 16.85 | ||||
| 7 | WP8273104 | Knob, Powerburner (white) (Replaces: 8273112) |
|
Immediately | $ 17.99 | ||||
| 7 | WP8273103 | Knob, Powerburner (blk/ss/u.silver) (Replaces: 8273111) |
|
Immediately | $ 16.85 | ||||
| 7 | WP8273106 | Knob, Powerburner (biscuit) (Replaces: 8273114) |
|
$ 19.55 | |||||
| 8 | WPW10447925 | Set, Grate Burner (black) (Replaces: 8522858) |
|
Immediately | $ 299.55 | ||||
| 8 | WPW10447925 | Set, Grate Burner (wetstone) (Replaces: W10166295) |
|
Immediately | $ 299.55 | ||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
