View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

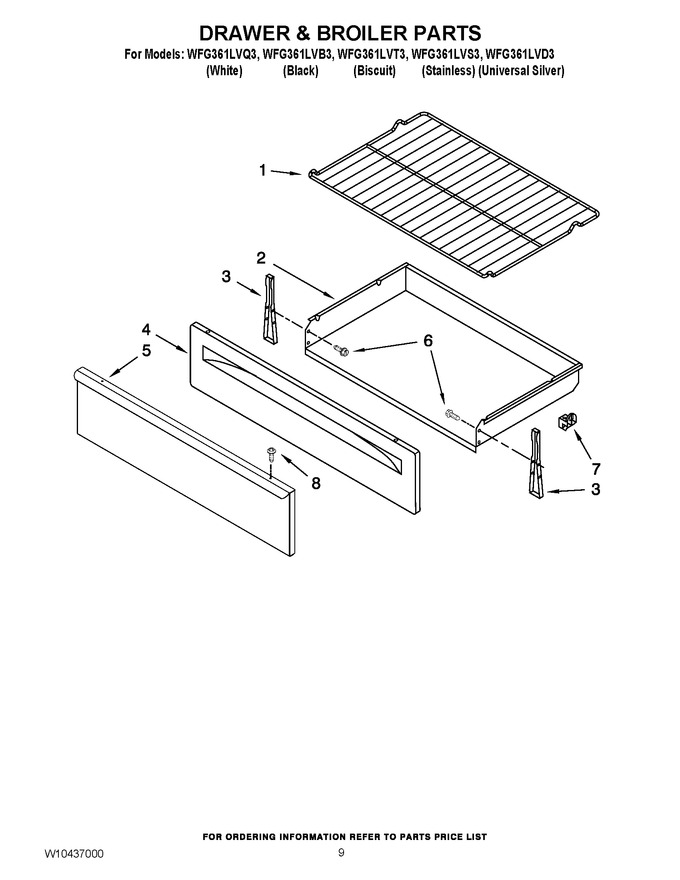

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 2 | 9761031 | Drawer, Storage |
|
- | |||||
| 3 | W10174397 | Bracket, Drawer |
|
$ 38.13 | |||||
| 3 | W11759228 | Stainless Only (Replaces: 3196817) |
|
$ 28.27 | |||||
| 4 | W11230490 | Panel, Drawer Frnt (black) (Replaces: 8053338) |
|
$ 211.59 | |||||
| 4 | W11230486 | Panel, Drawer Frnt (white) (Replaces: 8053336) |
|
$ 211.49 | |||||
| 4 | W11230473 | Panel, Drawer Frnt (biscuit) (Replaces: 8272502) |
|
- | |||||
| 4 | W11226776 | Panel, Drawer Frnt (universal Silver) (Replaces: 9761693) |
|
$ 204.06 | |||||
| 5 | W10244872 | Panel, Stainless Steel Model |
|
$ 106.68 | |||||
| 6 | WP3196814 | Screw (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 6 | WP3196813 | Screw (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 7 | WP8053334 | Spacer, Glide (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 8 | W11233072 | Screw (Replaces: 7101P634-60) |
|
Immediately | $ 14.72 |
