SELECT A DIAGRAM

01 - Cover Sheet

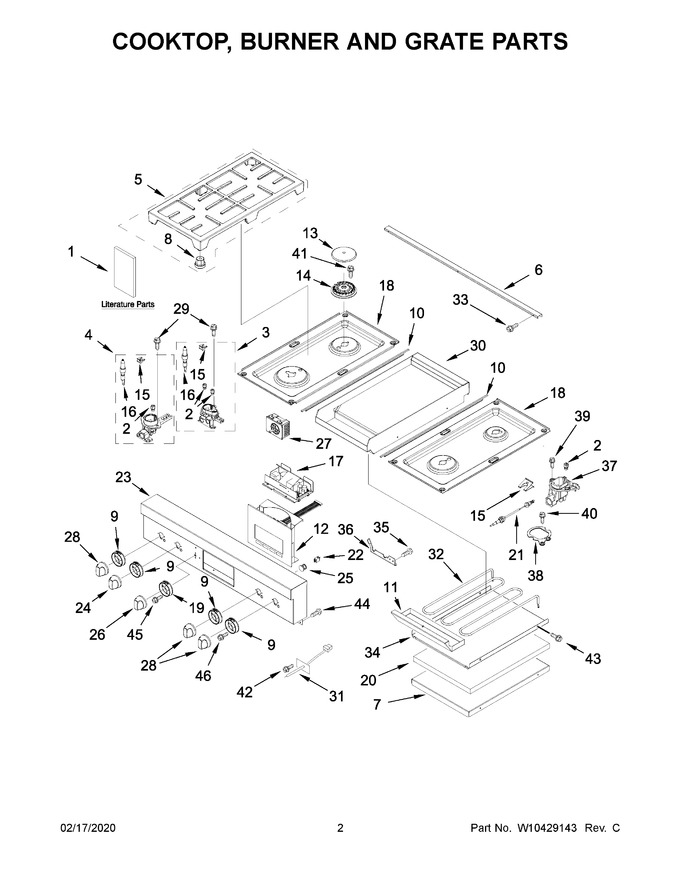

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403301		Sheet, Tech (english)		Appelez-nous	-
2	W10657945		Orifice (20k) (left Front, High)				$ 90.69
3	WPW10364555		Assembly, Orifice Holder (left Front)   (Replaces: W10364555)				$ 113.42
4	WPW10364556		Assembly, Orifice Holder (left Rear & Right Front)   (Replaces: W10364556)				$ 102.39
5	W11344501		Assembly, Grate (black)   (Replaces: W10276551)			Immediately	$ 218.28
6	W10269217		Trim, Island				$ 308.49
7	W10246074		Tray, Griddle Insulation		Appelez-nous	-
8	W11314395		Bumper, Grate   (Replaces: W11306485)				$ 6.95
9	W10276494		Bezel				$ 80.42
10	W10291193		Trim, L-strip		Appelez-nous	-
11	W10276497		Tray, Griddle Drip				$ 404.03
12	W10464535		Assembly, Keypad				$ 1,125.19
13	WPW10256034		Cap, Burner (black (left Front))   (Replaces: W10256034)				$ 138.19
14	W11106799		Spreader, Flame (left Front)   (Replaces: W10879806)			Immediately	$ 89.01
15	W10256046		Clip, Spring (electrode) (left Front, Left Rear & Right Front)				$ 11.56
16	W10833887		Electrode, Burner   (Replaces: W10256047)			Immediately	$ 31.77
17	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 311.25
18	W10352969		Cooktop (black (left))				$ 335.75
19	W10145453		Bezel, Griddle				$ 80.42
20	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
21	W10146042		Electrode, Burner				$ 19.74
22	W10116151		Housing, Indicator Light				$ 79.16
23	W11444937		Panel, Control   (Replaces: W10789954)				$ 748.31
24	W10145568		Knob, Dual (stainless (left Front))				$ 52.92
25	W10294500		Lens, Indicator Light				$ 7.69
26	W10145566		Knob, Griddle (stainless)			Immediately	$ 51.66
27	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97
28	W10145454		Knob, Single (stainless (left Rear, Right Front & Right Rear))				$ 46.94
29	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
30	W10625221		Module, Griddle				$ 1,457.32
31	W10319835		Sensor, Griddle				$ 239.28
32	W10138296		Element, Griddle		Appelez-nous	-
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
34	W10145620		Tray, Element Griddle		Appelez-nous	-
35	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
36	W10130760		Bracket, Moving Console (left)				$ 75.94
37	W10282659		Assembly, Orifice Holder (right Rear)				$ 40.50
38	8286930		Gasket, Orifice				$ 95.73
39	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
40	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
41	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
42	WPW10068250		Screw   (Replaces: 7101P074-60)				$ 4.27
43	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
44	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
45	W10674068		Screw				$ 24.39
46	WP74003976		Screw   (Replaces: W10906658)				$ 7.55
13A	WPW10256032		Cap, Burner (black (left Rear & Right Front))   (Replaces: W10256032)			Immediately	$ 88.38
13B	WPW10364463		Cap, Burner (black (right Rear))   (Replaces: W10364463)			Immediately	$ 55.85
14A	WPW10256027		Spreader, Flame (left Rear & Right Front)   (Replaces: W10256027)			Immediately	$ 101.02
14B	WPW10282515		Spreader, Flame (right Rear)   (Replaces: W10282515)			Immediately	$ 149.87
15A	8286863		Spring, Electrode (right Rear)				$ 76.92
18A	W10352968		Cooktop (black (right))				$ 337.26
1A	W10403302		Sheet, Tech (french)		Appelez-nous	-
1B	W10837387		Guide, Use & Care		Appelez-nous	-
1C	W10821685		Instructions, Installation		Appelez-nous	-
2A	W10819958		Orifice (1.2k) (left Front, Low)   (Replaces: W10256132)				$ 97.77
2B	W11051480		Orifice (15k) (left Rear And Right Front)   (Replaces: W10364221)				$ 90.69
2C	W10791075		Orifice (5k) (left Rear)   (Replaces: W10282663)				$ 103.68
36A	W10130759		Bracket, Moving Console (right)				$ 75.94
NI	W10830809		Harness, Main				$ 382.29
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10344051		Harness, Communication				$ 133.32
NI	W10116182		Harness, Griddle		Appelez-nous	-
NI	W10363280		Harness, Ignition				$ 89.67
NI	W10145988		Harness, Switch				$ 168.55
NI	W10116142		Harness, Convection Fan				$ 80.09
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11321066		Cord, Power   (Replaces: W10624586)				$ 118.94
NI	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 20.21
NI	9757778		Bushing, Snap Split				$ 97.63
NI	4450800		Screw, Grounding				$ 13.47
NI	W10766100		Kit, Lp Conversion		Appelez-nous	-
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 189.23
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	8019P013-60		Clip, Wire Lock				$ 15.70
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72

    View Diagram in Separate Window       Print Part List
