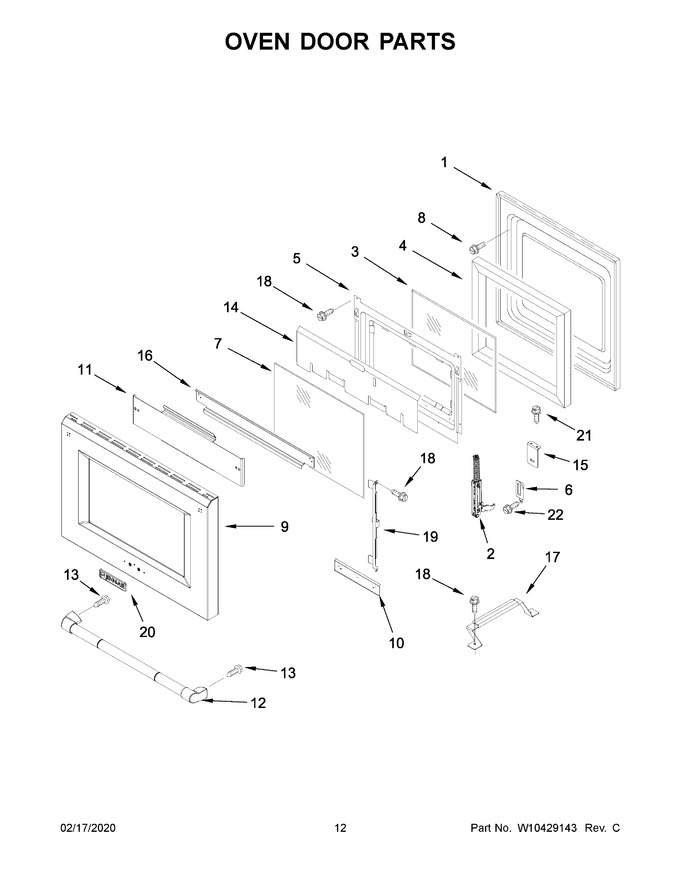

07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10188330		Panel, Door				$ 137.38
2	W10774099		Hinge, Door (left)			Immediately	$ 114.42
3	WPW10226005		Glass, Inner   (Replaces: W10226005)				$ 307.57
4	W11706557		Insulation, Door   (Replaces: W10115765)				$ 70.59
5	W10859077		Retainer, Glass   (Replaces: W10188324)				$ 234.31
6	W10115876		Cover, Hinge (left)		Appelez-nous	-
7	WPW10188327		Glass, Inner   (Replaces: W10188327)				$ 224.58
8	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
9	W10145757		Assembly, Outer Door		Appelez-nous	-
10	W10226024		Shield, Heat Bottom		Appelez-nous	-
11	W10145764		Bracket, Center Outer Glass		Appelez-nous	-
12	W10145770		Handle, Door				$ 322.58
13	WPW10276043		Screw   (Replaces: W10276043)				$ 7.30
14	W10188328		Shield, Heat Top		Appelez-nous	-
15	W10115715		Bracket, Door Top		Appelez-nous	-
16	W10145761		Bracket, Outer Glass Side		Appelez-nous	-
17	9759230		Bracket, Central				$ 36.30
18	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
19	WP9759229		Bracket, Side   (Replaces: 9759229)				$ 187.50
20	WPW10159578		Badge (stainless)   (Replaces: W10159578)			Immediately	$ 88.54
21	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
22	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
2A	W10774098		Hinge, Door (right)			Immediately	$ 114.42
6A	W10115877		Cover, Hinge (right)		Appelez-nous	-
