Diagram for 01 - Cooktop, Burner And Grate Parts
01 - Cooktop, Burner And Grate Parts

Diagram for 02 - Burner Box, Gas Valves, And Switches
02 - Burner Box, Gas Valves, And Switches

Diagram for 03 - Chassis Parts
03 - Chassis Parts

Diagram for 04 - Venting Parts
04 - Venting Parts

Diagram for 05 - Oven Parts
05 - Oven Parts

Diagram for 06 - Oven Door Parts
06 - Oven Door Parts

Diagram for 07 - Internal Oven Parts
07 - Internal Oven Parts

Diagram for 08 - Optional Parts
08 - Optional Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10475147 Module, Spark   (Replaces: 7431P038-60) In-Stock Immediately $ 238.24

2 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

3 4453115 Adapter, Female Special Order $ 126.70

4 W10189107 Bracket, Valve Appelez-nous -
5 W10367054 Bracket, Spark Module Appelez-nous -
6 W10115855 Holder, Strain Relief Appelez-nous -
7 W10402606 Manifold Appelez-nous -
8 WPW10385582 Valve, Single (lr,cf,rr)   (Replaces: W10385582) In-Stock Immediately $ 340.85

9 W10189097 Bushing, Burner Box Special Order $ 8.00

10 W10189140 Screw, Valve Mtg Special Order $ 6.82

11 W11193822 Regulator,pressure   (Replaces: W10145584) In-Stock Immediately $ 297.57

12 W10371520 Burner Box Appelez-nous -
13 W10308042 Bracket, Pressure Regulator Appelez-nous -
14 WPW10385583 Valve, Single (cr)   (Replaces: W10385583) In-Stock Immediately $ 332.10

15 8287102 Insulation, Spark Module Appelez-nous -
16 W10308051 Box, Broil Appelez-nous -
17 W10369547 Bracket, Orifice Holder Appelez-nous -
18 W10348600 Tube, Regulator Special Order $ 207.23

19 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

20 WPW10371235 Valve, Dual (lf,rf)   (Replaces: W10371235) In-Stock Immediately $ 268.41

21 W10115843 Cover, Ignition Appelez-nous -
22 W11601369 Reginitor, Gas   (Replaces: W10116108) In-Stock Immediately $ 67.35

23 W10423373 Seal, Switch Cover Appelez-nous -
25 W11688578 Insulation   (Replaces: W10145622) Appelez-nous -
29 8286930 Gasket, Orifice Special Order $ 95.73

NI WPW10368165 Tubing, Gas (lr)   (Replaces: W10368165) Special Order $ 74.12

NI W10368167 Tubing, Gas (lf-right) Special Order $ 174.72

NI W10368166 Tubing, Gas (lf-left) Special Order $ 53.99

NI WPW10368169 Tubing, Gas (rr)   (Replaces: W10368169) Special Order $ 74.58

NI W10368177 Tubing, Gas (rf-right) Appelez-nous -
NI W10353154 Tubing, Gas (rf-left) In-Stock Immediately $ 172.78

NI W10145488 Tubing, Gas (cr) Appelez-nous -
NI W10368168 Tubing, Gas (cf) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

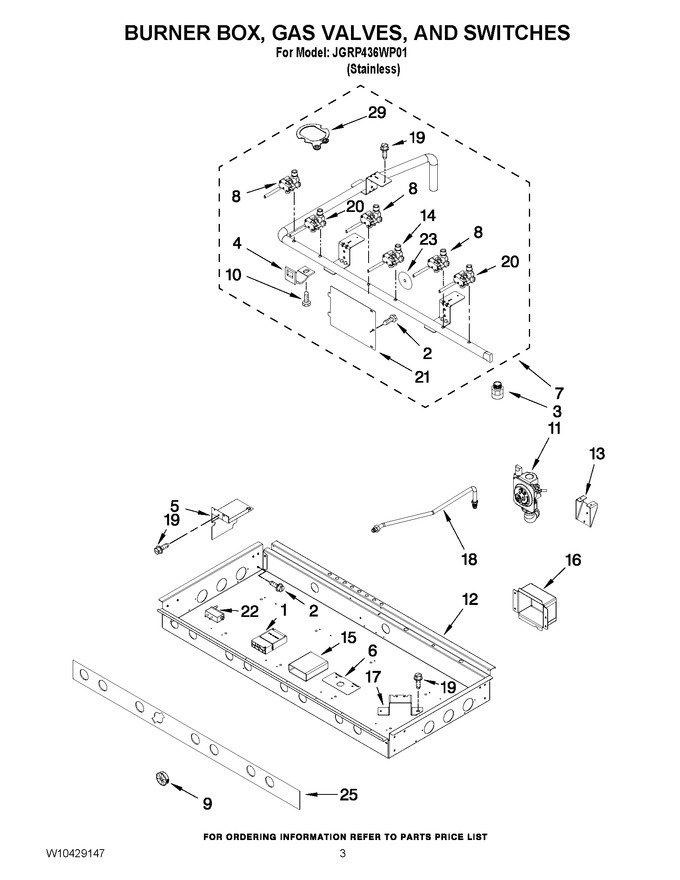

Diagram for JGRP436WP01
