SELECT A DIAGRAM

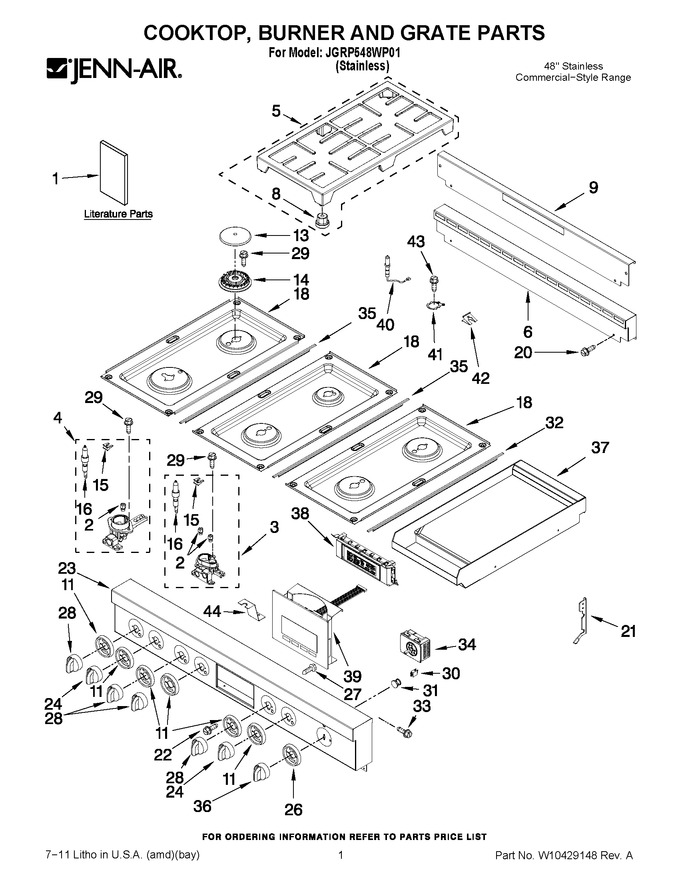

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - 30`` Oven Parts


04 - 18`` Oven Parts


05 - 48`` Chassis Parts


06 - Venting Parts


07 - 30`` Oven Door Parts


08 - 18`` Oven Door Parts


09 - 30`` Internal Oven Parts


10 - 18`` Internal Oven Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10403310		Tech Sheet (english)		Appelez-nous	-
1	W10403311		Tech Sheet (french)		Appelez-nous	-
1	W10399389		Use & Care Guide		Appelez-nous	-
1	W10394575		Installation Instructions		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
2	W10791075		Orifice (cr)   (Replaces: W10282663)				$ 103.68
2	W11051480		Orifice (lr,cf,rr)   (Replaces: W10364221)				$ 90.69
2	W10819958		Orifice (lf,rf - Low)   (Replaces: W10256132)				$ 97.77
2	W10340424		Orifice (lf,rf - High)				$ 93.67
3	WPW10364555		Orifice Holder (dual-lf,rf)   (Replaces: W10364555)				$ 113.42
4	W10282659		Orifice Holder (cr)				$ 40.50
4	WPW10364556		Orifice Holder (lr,cf,rr)   (Replaces: W10364556)				$ 102.39
5	W11344501		Grate, Burner   (Replaces: W10276551)			Immediately	$ 218.28
6	W10323251		Trim, Island				$ 318.88
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 15.47
9	W10323252		Trim, Island Insert				$ 207.83
13	WPW10256032		Cap, Burner (lr,cf,rr)   (Replaces: W10256032)			Immediately	$ 88.38
13	WPW10364463		Cap, Burner (cr)   (Replaces: W10364463)			Immediately	$ 55.85
13	WPW10256034		Cap, Burner (lf,rf)   (Replaces: W10256034)				$ 138.19
14	WPW10256027		Base, Burner (lr,cf,rr)   (Replaces: W10256027)			Immediately	$ 101.02
14	WPW10282515		Base, Burner (cr)   (Replaces: W10282515)			Immediately	$ 149.87
14	W11106799		Base, Burner (lf,rf)   (Replaces: W10256029)			Immediately	$ 89.01
15	W10256046		Spring, Electrode				$ 11.56
16	W10833887		Electrode Lf,rf,lr,cf,rr   (Replaces: W10256047)			Immediately	$ 31.77
18	W10352966		Cooktop (right)				$ 320.43
18	W10352963		Cooktop (center)				$ 317.55
18	W10352969		Cooktop (left)				$ 335.75
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
21	W10130759		Bracket, Moving Console (right)				$ 75.94
21	W10130760		Bracket,moving Console (left)				$ 75.94
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
23	W10295787		Assembly, Console		Appelez-nous	-
24	W10145568		Knob, Control (dual-lf,rf)				$ 52.92
26	W10145453		Bezel, Griddle				$ 80.42
27	W11676349		Screw   (Replaces: 8286921)			Immediately	$ 14.76
28	W10145454		Knob, Control				$ 46.94
29	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10294500		Lens, Indicator Light				$ 7.69
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
34	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97
35	W10271524		Trim, T-strip				$ 212.34
36	W10145566		Knob, Griddle			Immediately	$ 51.66
37	W10625221		Module, Griddle   (Replaces: W10276498)				$ 1,457.32
38	WPW10145531		User Interface   (Replaces: W10145531)			Immediately	$ 311.25
39	W10344182		Keypad Assembly		Appelez-nous	-
40	W10854967		Electrode, Wire Cr   (Replaces: 8286725)			Immediately	$ 48.38
41	8286930		Gasket, Orifice Holder				$ 95.73
42	8286863		Spring, Electrode Cr				$ 76.92
43	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
44	3801F946-51		Bracket, Orifice Support		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
