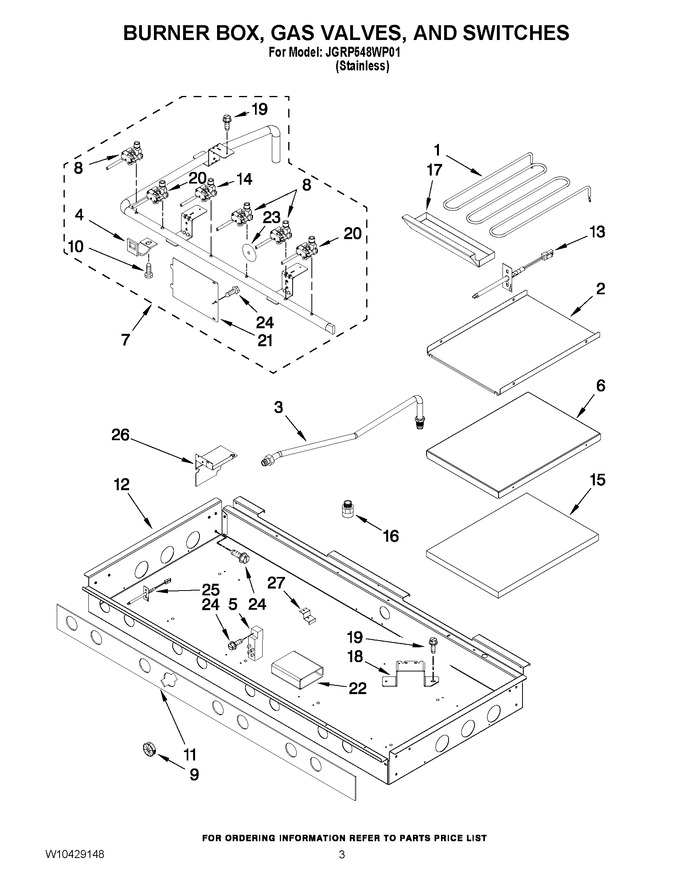

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193014 | Element, Griddle |
|
$ 323.46 | |||||
| 2 | W10145620 | Tray-element, Griddle |
|
- | |||||
| 3 | W10348600 | Tube, Regulator |
|
$ 207.23 | |||||
| 4 | W10189107 | Bracket, Valve |
|
- | |||||
| 5 | WPW10475147 | Module, Spark (Replaces: 7431P038-60) |
|
Immediately | $ 385.00 | ||||
| 6 | W10246074 | Tray-insulation, Griddle |
|
- | |||||
| 7 | WPW10402608 | Manifold (Replaces: W10402608) |
|
$ 530.44 | |||||
| 8 | WPW10385582 | Valve, Gas (lr,cf,rr) (Replaces: W10385582) |
|
Immediately | $ 340.85 | ||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 8.00 | |||||
| 10 | W10189140 | Screw, Valve Mtg |
|
$ 6.82 | |||||
| 11 | W11688741 | Insulation, Burner Box (Replaces: W10160202) |
|
- | |||||
| 12 | W10371521 | Burner Box |
|
- | |||||
| 13 | W10319835 | Sensor, Griddle |
|
$ 239.28 | |||||
| 14 | WPW10385583 | Valve, Gas (cr) (Replaces: W10385583) |
|
Immediately | $ 332.10 | ||||
| 15 | W11684995 | Insulation, Griddle (Replaces: W10145621) |
|
- | |||||
| 16 | 4453115 | Adapter, 1/2`` Female |
|
$ 126.70 | |||||
| 17 | W10276497 | Drip Tray, Griddle |
|
$ 404.03 | |||||
| 18 | W10369547 | Bracket, Burner |
|
- | |||||
| 19 | 4450800 | Screw |
|
$ 13.47 | |||||
| 20 | WPW10371235 | Valve, Dual (lf,rf) (Replaces: W10371235) |
|
Immediately | $ 332.15 | ||||
| 21 | W10115843 | Cover, Ignition |
|
- | |||||
| 22 | 8287102 | Insulation, Spark Module |
|
- | |||||
| 23 | W10423373 | Seal, Switch Cover |
|
- | |||||
| 24 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 25 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 105.00 | ||||
| 26 | W10367054 | Bracket, Spark Module |
|
- | |||||
| 27 | W10308039 | Bracket, Bake Alignement |
|
- | |||||
| NI | W10367098 | Tubing, Gas (cf) |
|
- | |||||
| NI | WPW10367095 | Tubing, Gas (lr) (Replaces: W10367095) |
|
$ 73.98 | |||||
| NI | W10145492 | Tubing, Gas (cr) |
|
- | |||||
| NI | WPW10367099 | Tubing, Gas (rr) (Replaces: W10367099) |
|
$ 74.87 | |||||
| NI | W10367096 | Tubing, Gas (lf (low)) |
|
- | |||||
| NI | W10367100 | Tubing, Gas (rf (low)) |
|
- | |||||
| NI | W10367097 | Tubing, Gas (lf (high)) |
|
- | |||||
| NI | W10367101 | Tubing, Gas (rf (high)) |
|
$ 78.49 |
