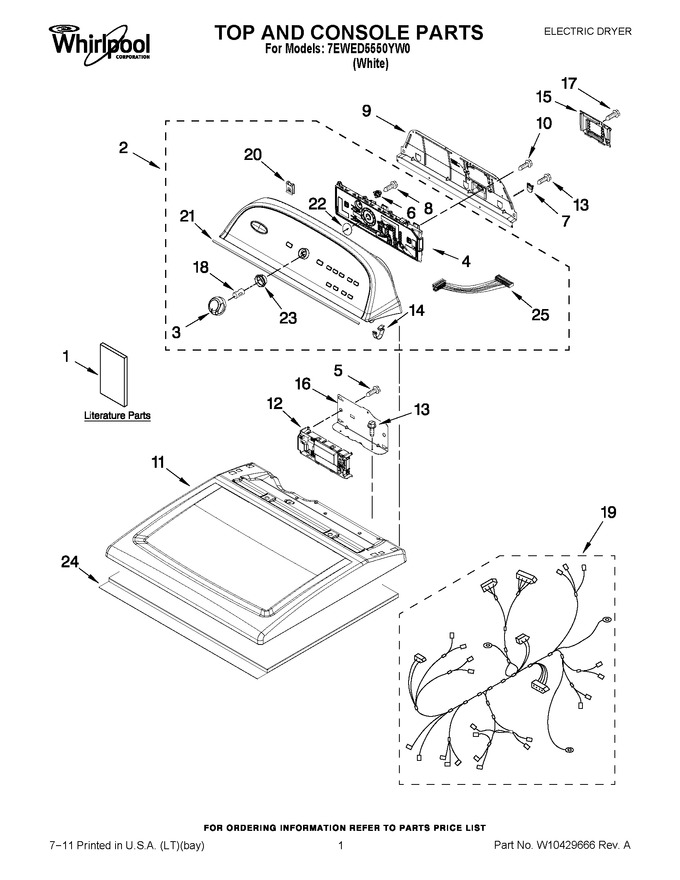

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10423429		Guide, Use & Care		Appelez-nous	-
1	W10096965		Tech Sheet		Appelez-nous	-
1	W10329764		Installation Instructions		Appelez-nous	-
2	W10414172		Console Assembly (complete)		Appelez-nous	-
3	WPW10251392		Knob Assembly   (Replaces: W10251392)				$ 59.55
4	WPW10269624		User Interface Assembly   (Replaces: W10269624)				$ 313.89
5	WP90767		Screw, 8-18 X .298   (Replaces: 8533971)			Immediately	$ 8.25
6	W10274524		Tensioner Fascia		Appelez-nous	-
7	W10279552		Plug-upper Rear Panel		Appelez-nous	-
8	W10853898		Screw, 8-16 X 1/2   (Replaces: W10219342)			Immediately	$ 8.18
9	W10096969		Panel, Rear				$ 197.80
10	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
11	W11641121		Top   (Replaces: W10260246)			Immediately	$ 215.10
12	WPW10317636		Ccu-control   (Replaces: W10317636)			Immediately	$ 379.85
13	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
16	W10271580		Bracket, Motor Control		Appelez-nous	-
17	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
19	W10331569		Harness, Electric		Appelez-nous	-
20	W11213336		8-18 Nut-u Type   (Replaces: W10298336)				$ 8.13
21	W10280079		Seal, Console		Appelez-nous	-
22	W10323092		Seal-ui		Appelez-nous	-
23	W10325119		Spacer, Knob		Appelez-nous	-
24	W10123956		Dampening Panel		Appelez-nous	-
25	W10285495		Cable, Ui		Appelez-nous	-
