SELECT A DIAGRAM

01 - Top And Console Parts

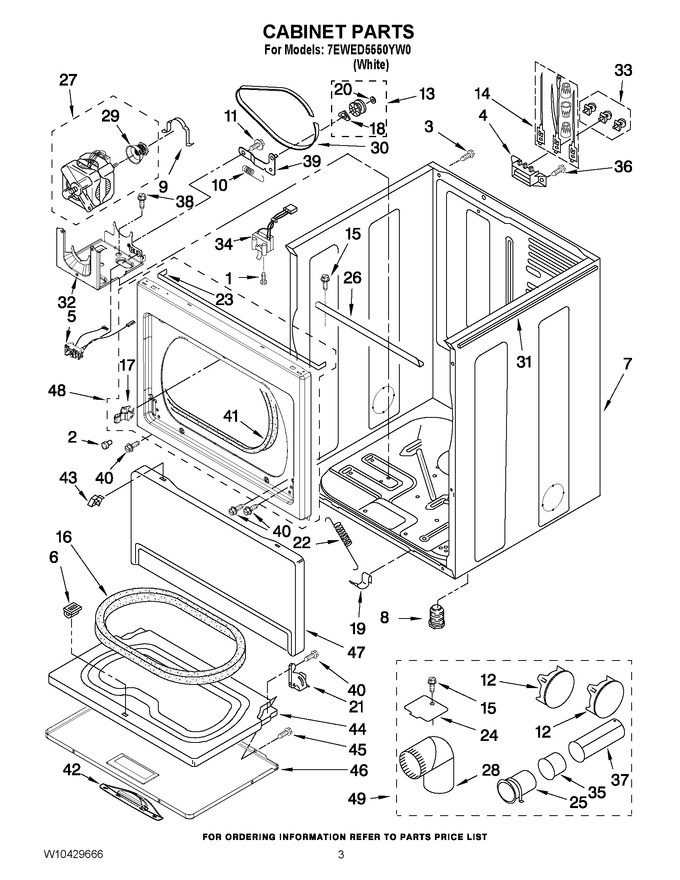

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
2	693152		Bumper				$ 11.51
3	WP90767		Screw, Ground   (Replaces: 8533971)			Immediately	$ 8.25
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	WPW10411937		Switch, Broken Belt   (Replaces: W10246525)			Immediately	$ 36.06
6	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
7	W11417441		Cabinet   (Replaces: 8310656)				$ 440.17
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor (2)   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent   (Replaces: 49252)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	279318		Terminal, Brass & Tinned (3) (includes Illus. 33)			Immediately	$ 106.04
15	WP488729		Screw, 8-18 X 5/16   (Replaces: 3390647)			Immediately	$ 8.28
16	W10325058		Seal, Door				$ 136.50
17	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
18	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
19	WPW10291934		Clip (2)   (Replaces: W10291934)				$ 8.14
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
21	WP3387560		Hinge, Door (r.h.)   (Replaces: 3387560)				$ 109.20
21	WP3387559		Hinge, Door (l.h.)   (Replaces: 3387559)				$ 109.20
22	WP3387565		Spring, Door (2)   (Replaces: 3387565)				$ 41.32
23	W10312811		Seal, Spill Guard				$ 67.73
24	WPW10354249		Cover-plate   (Replaces: 3394331)				$ 9.41
25	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
26	W10236068		Bracket, Cabinet				$ 24.47
27	279787		Motor, Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 235.65
28	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 28.16
29	W10837625		Pulley, Motor   (Replaces: 8578220)			Immediately	$ 12.77
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10336128		Seal, Spill Guard				$ 15.08
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 94.84
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
34	WP3406107		Door Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
35	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
36	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
37	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
38	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	WP308685		Screw, 10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
42	WPW10284093		Door Handle   (Replaces: W10284093)				$ 105.29
43	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
44	WP8066045		Door Inner   (Replaces: 8066045)				$ 204.20
45	WP488627		Screw, 8-18 X 3/8   (Replaces: 342055)				$ 8.11
46	W10279553		Door, Front		Appelez-nous	-
47	WP3406797		Toe Panel (includes, Illus. 2 )   (Replaces: 697215)				$ 250.25
48	697227		Upper Front Panel		Appelez-nous	-
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
NI	WPW10131132		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10331132)				$ 75.81

    View Diagram in Separate Window       Print Part List
