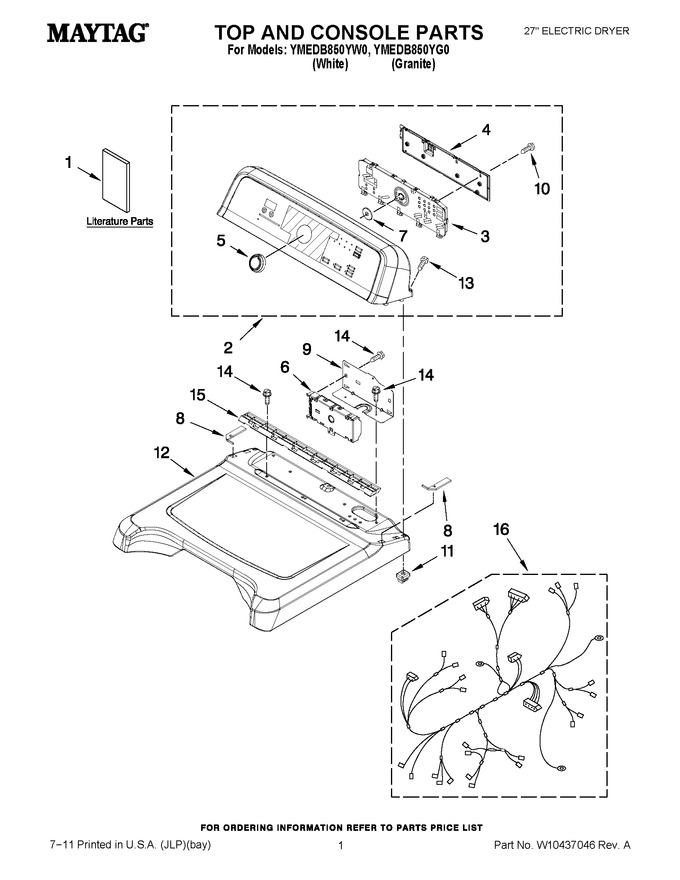

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10388780		Guide, Use & Care		Appelez-nous	-
1	W10393006		Tech, Sheet		Appelez-nous	-
1	W10392126		Installation, Diagnostic Guide		Appelez-nous	-
2	W10338345		Panel, Console (white)				$ 353.64
2	W10416110		Panel, Console (granite)				$ 380.67
3	W10388670		User Interface				$ 275.73
4	W10051124		Cover, Rear (ui Assembly)				$ 263.67
5	WPW10338554		Knob Assembly   (Replaces: W10338554)				$ 64.58
6	WPW10432257		Control Electronic   (Replaces: W10249829)			Immediately	$ 333.62
7	8572039		Seal-ui		Appelez-nous	-
8	W10219694		Foam Seal, Top (right-side)		Appelez-nous	-
8	W10219695		Foam Seal, Top (left-side)		Appelez-nous	-
9	8563853		Bracket, Machine Controller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
11	W10112673		Screw, Grommet				$ 9.75
12	W10338836		Top (granite)				$ 142.15
12	W10223157		Top (white)				$ 159.40
13	W10131402		Screw		Appelez-nous	-
14	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 83.71
15	8558863		Bracket, Console				$ 33.78
16	W10319801		Harness, Electric				$ 150.28
