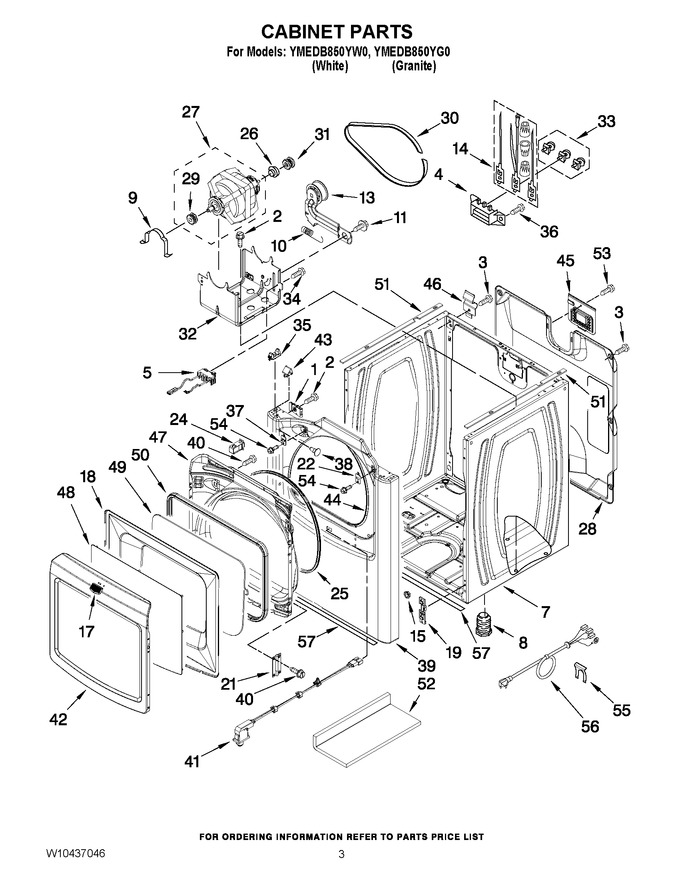

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10007520		Clip, Ground				$ 30.94
2	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 8.25
3	WP693995		Screw, 8-18 X 1/2   (Replaces: 693995)			Immediately	$ 7.55
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	WPW10411937		Switch,broken Belt   (Replaces: W10314253)			Immediately	$ 36.06
7	W10223154		Cabinet (white)				$ 354.38
7	W10338830		Cabinet (granite)				$ 160.73
8	W10813918		Foot, Dryer   (Replaces: W10363894)			Immediately	$ 13.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
13	WPW10547292		Pulley Assembly   (Replaces: 8547160)			Immediately	$ 43.98
14	279318		Terminal, Brass & Tinned (includes Illus. 33)			Immediately	$ 106.04
15	8578560		Plug, Hole (cabinet Base)				$ 95.94
17	W10492808		Badge   (Replaces: W10323735)				$ 59.82
18	WPW10532209		Bezel, Door   (Replaces: W10304170)				$ 206.15
19	W10854425		Clip   (Replaces: 3394083)			Immediately	$ 16.34
21	W10252472		Hinge Assembly (white)				$ 62.91
21	W10304174		Hinge Assembly (granite)		Appelez-nous	-
22	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 29.69
24	WPW10111905		Catch, Door Assembly   (Replaces: W10111905)			Immediately	$ 7.59
25	W10239307		Seal, Door   (Replaces: W10221653)				$ 141.27
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
27	WPW10448896		Motor, Assembly 60 Hz.   (Replaces: W10136932)			Immediately	$ 343.09
28	W10140148		Panel, Rear				$ 139.84
29	W10139247		Pulley, Blower			Immediately	$ 133.55
30	WPW10136934		Belt, Drive   (Replaces: W10136934)			Immediately	$ 48.60
31	W10136930		Pulley, (motor Drum)				$ 48.18
32	WPW10308685		Bracket, Motor   (Replaces: W10308685)				$ 135.62
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
34	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 8.25
35	WP8568303		Locator, Snap Down   (Replaces: 8568303)				$ 7.94
36	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
37	W10295405		Strike, Door   (Replaces: W10111906)				$ 115.09
38	W10144494		Plug, Hole				$ 35.14
39	W10223442		Front Panel (white)		Appelez-nous	-
39	W10252456		Front Panel (granite)				$ 150.13
40	WP488627		Screw, 8-18 X 1/8   (Replaces: 342055)				$ 8.11
41	WPW10201785		Door Switch Assembly   (Replaces: W10201785)				$ 88.23
42	WPW10344649		Door, Outer (granite)   (Replaces: W10344649)				$ 198.78
42	W10252478		Door, Outer (white)				$ 219.91
43	WP8576625		Lock, Top Front   (Replaces: 8576625)				$ 7.60
44	W10044490		Seal, Front Panel				$ 34.05
45	W10110241		Cover, Terminal Block				$ 43.62
46	WP8066217		Hinge Top   (Replaces: 238088)				$ 8.21
47	W10111878		Door, Inner (white)				$ 218.78
47	W10304172		Door, Inner (granite)				$ 133.40
48	W10394552		Window-outer				$ 201.61
49	WPW10111857		Glass, Inner Door   (Replaces: W10111857)				$ 306.19
50	W10111859		Gasket, Inner Door				$ 121.25
51	WPW10157932		Foam Seal   (Replaces: W10316529)			Immediately	$ 8.45
52	W11037143		Cover, Door Switch   (Replaces: W10215725)		Appelez-nous	-
53	W10850756		Screw,10-32 X 1/16   (Replaces: 8533974)				$ 8.20
54	WP3400805		Screw, 8-18 X 1/2   (Replaces: 3400805)				$ 7.55
55	W11095079		Power Cord   (Replaces: 8529008)			Immediately	$ 138.24
56	W11712577		Strain Relief-clip   (Replaces: 694415)			Immediately	$ 7.77
57	WPW10224768		Foam Seal   (Replaces: W10224768)				$ 75.69
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
