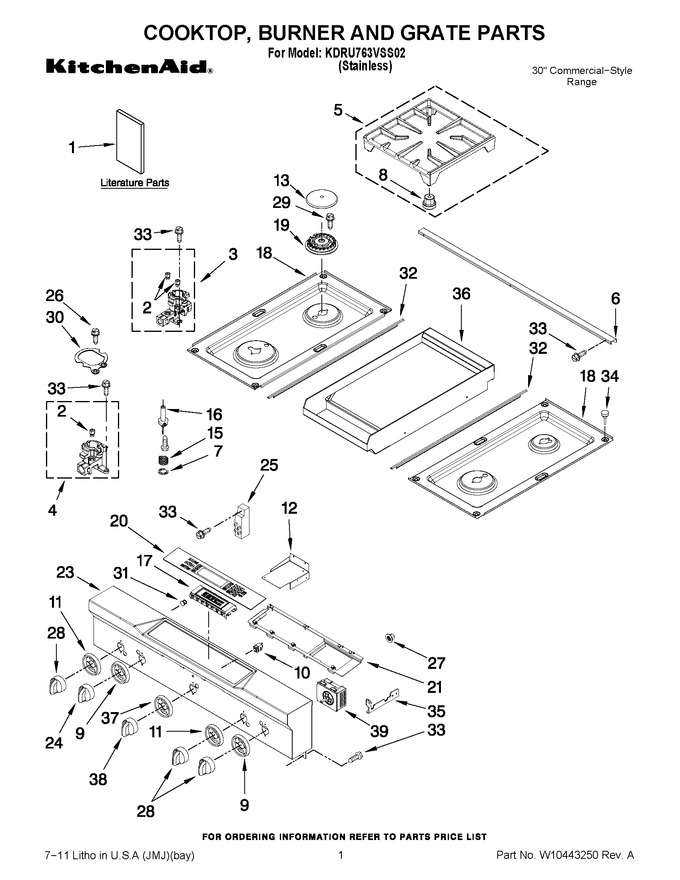

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10399383 | Use & Care Guide |
|
- | |||||
| 1 | W10403299 | Tech Sheet (english) |
|
- | |||||
| 1 | W10403300 | Tech Sheet (french) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10394571 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 2 | W10340424 | Orifice (lf & Rf) |
|
$ 93.67 | |||||
| 2 | W11051480 | Orifice (lr) (Replaces: W10364221) |
|
$ 90.69 | |||||
| 2 | W10819958 | Orifice (rr) (Replaces: W10256132) |
|
$ 97.77 | |||||
| 3 | WPW10364555 | Orifice Holder (dual-lf) (Replaces: W10364555) |
|
$ 113.42 | |||||
| 4 | WPW10364556 | Orifice Holder (lr & Rf) (Replaces: W10364556) |
|
$ 102.39 | |||||
| 4 | W10282659 | Orifice Holder (rr) |
|
$ 40.50 | |||||
| 5 | WPW10115928 | Grate, Burner (Replaces: W10115928) |
|
$ 201.41 | |||||
| 6 | W10269217 | Trim, Island |
|
$ 308.49 | |||||
| 7 | W10160825 | Clip, Electrode |
|
$ 52.85 | |||||
| 8 | W10185266 | Rubber, Foot (Replaces: 8286695) |
|
Immediately | $ 15.47 | ||||
| 9 | W10261510 | Bezel, Front |
|
$ 55.11 | |||||
| 10 | W10116151 | Indicator, Housing |
|
$ 79.16 | |||||
| 11 | W10261512 | Bezel, Rear |
|
- | |||||
| 12 | W10367052 | Bracket, Spark Module |
|
- | |||||
| 13 | WPW10364463 | Cap, Burner (rr) (Replaces: W10364463) |
|
Immediately | $ 55.85 | ||||
| 13 | WPW10256032 | Cap, Burner (lr & Rf) (Replaces: W10256032) |
|
Immediately | $ 88.38 | ||||
| 13 | WPW10256034 | Cap, Burner (lf) (Replaces: W10256034) |
|
$ 138.19 | |||||
| 15 | W10256046 | Spring, Electrode (lf, Lr, Rf) |
|
$ 11.56 | |||||
| 15 | 8286863 | Spring, Electrode (rr) |
|
$ 76.92 | |||||
| 16 | W10833887 | Electrode (lr & Rf) (Replaces: W10256047) |
|
Immediately | $ 31.77 | ||||
| 16 | WPW10145991 | Electrode (rr) (Replaces: W10145991) |
|
Immediately | $ 84.47 | ||||
| 17 | W10298117 | Module, User Interface |
|
- | |||||
| 18 | W10352969 | Cooktop (left) |
|
$ 335.75 | |||||
| 18 | W10352968 | Cooktop (right) |
|
$ 337.26 | |||||
| 19 | WPW10256027 | Burner Head (lr & Rf) (Replaces: W10256027) |
|
Immediately | $ 101.02 | ||||
| 19 | WPW10282515 | Burner Head (rr) (Replaces: W10282515) |
|
Immediately | $ 149.87 | ||||
| 19 | W11106799 | Burner Head (lf) (Replaces: W10256029) |
|
Immediately | $ 89.01 | ||||
| 20 | W10116103 | Keypad |
|
$ 390.11 | |||||
| 21 | W10250477 | Bracket, User Interface |
|
- | |||||
| 23 | W10284666 | Assembly, Console |
|
- | |||||
| 24 | W11244176 | Knob, Control (dual - Lf) (Replaces: W10250389) |
|
$ 78.37 | |||||
| 25 | WPW10475147 | Module, Spark (Replaces: 7431P038-60) |
|
Immediately | $ 238.24 | ||||
| 26 | 8286930 | Gasket, Orifice Holder |
|
$ 95.73 | |||||
| 27 | 7103P166-60 | Nut, Hex |
|
$ 18.56 | |||||
| 28 | W11177673 | Knob, Control (Replaces: W10250391) |
|
$ 90.55 | |||||
| 29 | W11404293 | Screw (Replaces: W10078270) |
|
Immediately | $ 14.74 | ||||
| 30 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 31 | W10116115 | Len, Indicator Light |
|
$ 7.86 | |||||
| 32 | W10291193 | Trim |
|
- | |||||
| 33 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 34 | 4448520 | Bumper (12) |
|
$ 22.25 | |||||
| 35 | W10130760 | Bracket, Moving Console (left) |
|
$ 75.94 | |||||
| 35 | W10130759 | Bracket, Moving Console (right) |
|
$ 75.94 | |||||
| 36 | W10625221 | Griddle, Module (Replaces: W10276498) |
|
$ 1,457.32 | |||||
| 37 | W10261515 | Bezel, Griddle |
|
- | |||||
| 38 | W10250390 | Knob, Griddle |
|
$ 36.98 | |||||
| 39 | WPW10116113 | Control, Griddle (Replaces: W10116113) |
|
$ 351.97 |
