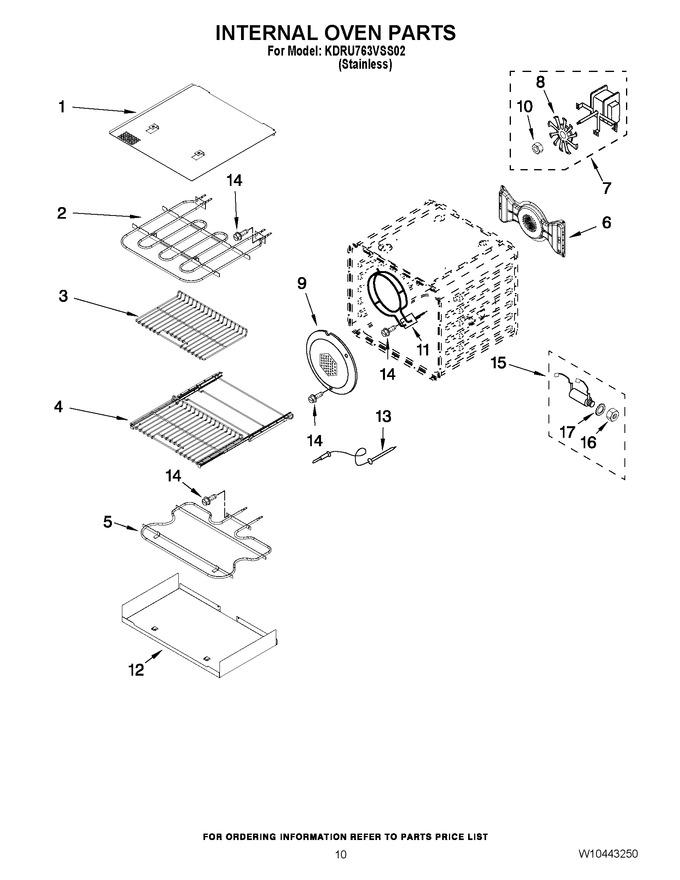

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10160857 | Shield, Element Broil |
|
$ 134.74 | |||||
| 2 | W10857686 | Element, Broil (Replaces: W10115991) |
|
$ 342.84 | |||||
| 3 | W10212435 | Oven, Rack Sliding Hefty |
|
- | |||||
| 4 | W10822069 | Rack, Heftier (Replaces: W10277392) |
|
Immediately | $ 138.59 | ||||
| 5 | W10860270 | Element, Hidden Bake (Replaces: W10115992) |
|
Immediately | $ 202.25 | ||||
| 6 | W10160879 | Baffle, Convection |
|
$ 71.06 | |||||
| 7 | W10794022 | Motor, Convection (Replaces: W10116228) |
|
Immediately | $ 214.63 | ||||
| 8 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 9 | W10261523 | Cover, Fan |
|
$ 77.85 | |||||
| 10 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 21.78 | |||||
| 11 | W10116434 | Element,convection |
|
$ 342.58 | |||||
| 12 | W10160872 | Tray, Hidden Bake |
|
$ 83.69 | |||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 14 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 15 | W10150011 | Jack, Meat Probe |
|
$ 190.68 | |||||
| 16 | WP9755546 | Nut (Replaces: 9755546) |
|
$ 7.30 | |||||
| 17 | WP9755547 | Washer (Replaces: 9755547) |
|
$ 6.41 |
