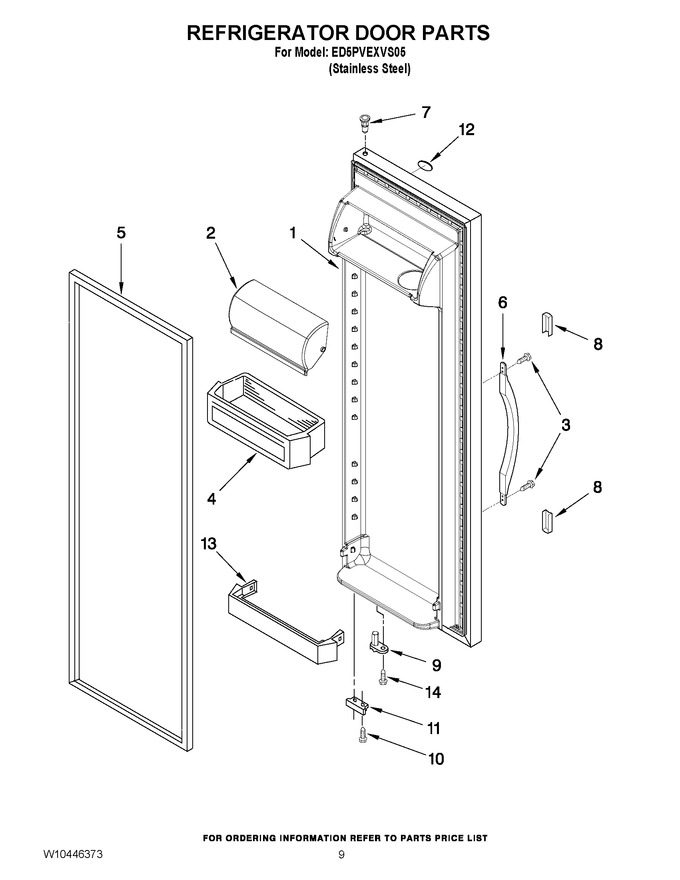

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10365660 | Refrigerator Door (includes Item 5) (stainless Steel) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 4 | WPW10321304 | Door Bin (Replaces: W10321304) |
|
Immediately | $ 44.73 | ||||
| 5 | 2159083 | Door Gasket Magnetic (Replaces: 2309529) |
|
$ 251.49 | |||||
| 6 | W10285540 | Handle |
|
$ 71.85 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 8 | WP2194272B | Trim, Handle (Replaces: 2194272B) |
|
$ 7.30 | |||||
| 9 | WP2182179 | Door Closer, (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 10 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 11 | W10185571 | Bracket, Door Stop |
|
- | |||||
| 12 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 13 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 14 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 |
