SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

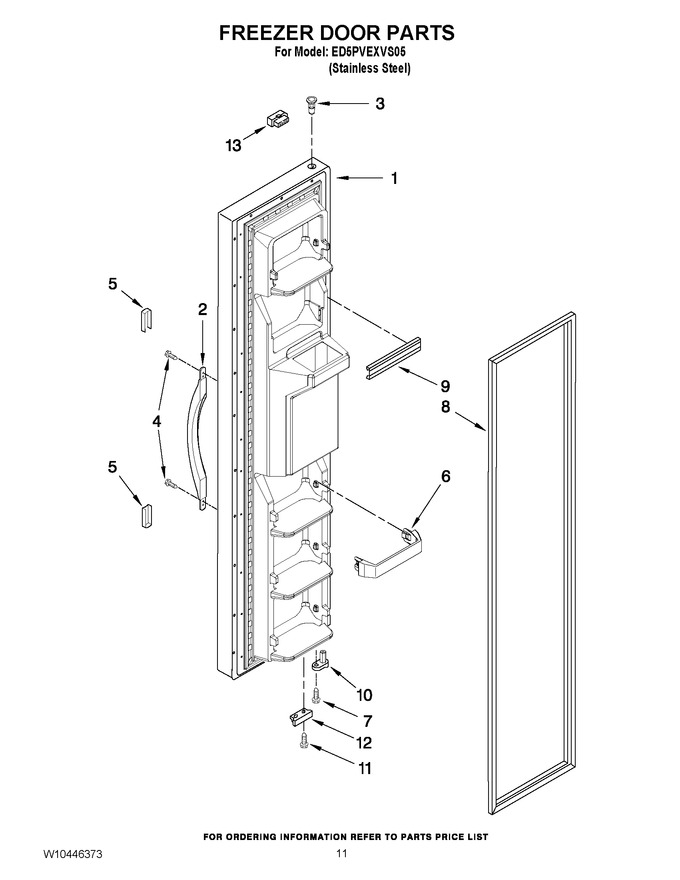

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10365697		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	W10285540		Handle, Center				$ 71.85
3	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2194272B		Trim, Handle   (Replaces: 2194272B)				$ 7.30
6	WP2309718		Trim, Door (4)   (Replaces: 2309718)				$ 61.49
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159082		Door Gasket, Magnetic   (Replaces: 2309533)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307490)			Immediately	$ 24.27
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	W10185567		Bracket, Door Stop		Appelez-nous	-
13	WP2154473		Connector   (Replaces: 2154473)				$ 24.83

    View Diagram in Separate Window       Print Part List
