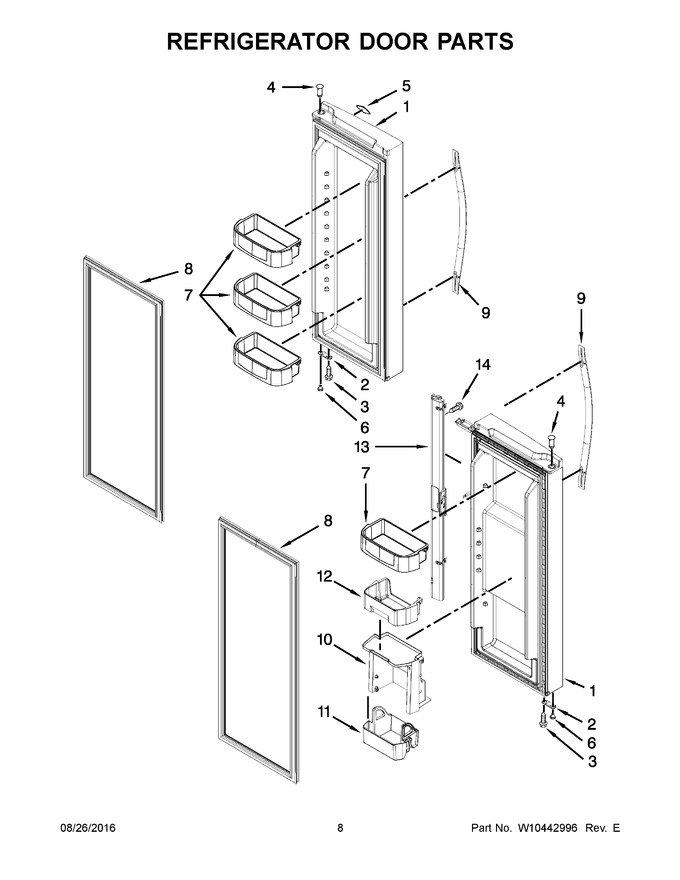

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10359401 | Door, Refrigerator (includes #8) (left Hand (white)) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (left Hand) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11544568 | Thimble, Top (white) (Replaces: W10366270) |
|
Immediately | $ 13.95 | ||||
| 5 | W11178521 | Badge, Whirlpool (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 72.18 | ||||
| 8 | W10460612 | Gasket, Door (beige) (Replaces: W10353189) |
|
Immediately | $ 232.69 | ||||
| 9 | W10830136 | Assembly, Handle (white) (Replaces: W10357233) |
|
$ 196.17 | |||||
| 10 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 103.80 | |||||
| 11 | W11106787 | Caddy, Condiment (Replaces: W10462299) |
|
Immediately | $ 106.98 | ||||
| 12 | WPW10326335 | Bin, Shallow (Replaces: W10326335) |
|
Immediately | $ 58.46 | ||||
| 13 | WPW10624451 | Assembly, Flipper Mullion (white) (Replaces: W10448918) |
|
Immediately | $ 128.93 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 13A | W11692845 | Assembly, Flipper Mullion (black) (Replaces: W10448923) |
|
$ 241.66 | |||||
| 13B | WPW10624450 | Assembly, Flipper Mullion (grey) (Replaces: W10448924) |
|
Immediately | $ 223.83 | ||||
| 1A | LW10353181 | Door, Refrigerator (includes #8) (right Hand (white)) (Replaces: W10353181) |
|
$ 823.57 | |||||
| 1B | LW10406595 | Door, Refrigerator (includes #8) (left Hand (black)) (Replaces: W10406595) |
|
$ 825.57 | |||||
| 1C | LW10413518 | Door, Refrigerator (includes #8) (right Hand (black)) (Replaces: W10413518) |
|
$ 637.16 | |||||
| 1D | LW10406934 | Door, Refrigerator (includes #8) (left Hand (stainless)) (Replaces: W10406934) |
|
$ 944.20 | |||||
| 1E | LW10413519 | Door, Refrigerator (includes #8) (right Hand (stainless)) (Replaces: W10413519) |
|
$ 827.54 | |||||
| 2A | WPW10397055 | Bracket, Door Stop (right Hand) (Replaces: W10397055) |
|
Immediately | $ 36.94 | ||||
| 4A | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5A | WPW10393264 | Badge, Whirlpool (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 8A | W10460610 | Gasket, Door (black) (Replaces: W10413465) |
|
$ 225.77 | |||||
| 8B | WPW10460580 | Gasket, Door (grey) (Replaces: W10413468) |
|
Immediately | $ 221.51 | ||||
| 9A | W10830130 | Assembly, Handle (black) (Replaces: W10398786) |
|
Immediately | $ 189.54 | ||||
| 9B | W11459378 | Assembly, Handle (stainless) (Replaces: W10356566) |
|
Immediately | $ 183.89 |
