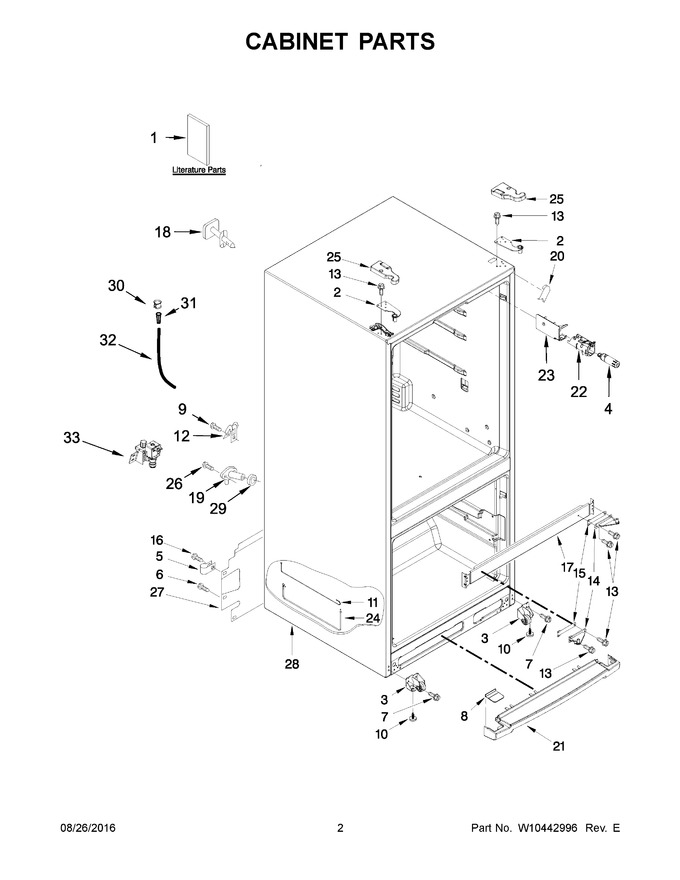

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10360467 | Use And Care Guide |
|
- | |||||
| 2 | W10546298 | Hinge, Top Left Hand (Replaces: W10366254) |
|
$ 63.14 | |||||
| 3 | WPW10359256 | Roller, Front (left Hand) (Replaces: W10359256) |
|
Immediately | $ 46.65 | ||||
| 4 | EDR1RXD1B | Filter, Water (Replaces: W10217316) |
|
Immediately | $ 49.99 | ||||
| 5 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 10.73 | |||||
| 6 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WPW10339257 | Cover, Toe Grille (white) (Replaces: W10339257) |
|
$ 76.88 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 11 | WPW10449619 | Tube, Filter Inlet (Replaces: W10449619) |
|
Immediately | $ 121.14 | ||||
| 12 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 14 | WPW10521411 | Center Hinge, Left Hand (Replaces: W10363678) |
|
Immediately | $ 69.74 | ||||
| 15 | WPW10450363 | Shim, Center Hinge (Replaces: W10450363) |
|
Immediately | $ 22.81 | ||||
| 16 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.54 | ||||
| 17 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 18 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 19 | WP2196157 | Fitting, Water (Replaces: 2174760) |
|
Immediately | $ 11.33 | ||||
| 20 | WPW10283959 | Filler, Corner (white) (Replaces: W10283959) |
|
$ 7.39 | |||||
| 21 | WPW10300127 | Grille (white) (Replaces: W10300127) |
|
$ 145.34 | |||||
| 22 | W10844267 | Housing, Water Filter (Replaces: W10346257) |
|
Immediately | $ 133.02 | ||||
| 23 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 24 | W10801011 | Tube, Filter Outlet (Replaces: W10449617) |
|
Immediately | $ 161.72 | ||||
| 25 | W10465765 | Cover, Hinge (left Hand (white)) |
|
$ 18.51 | |||||
| 26 | WPW10306392 | Cover, Water Filter (Replaces: W10306392) |
|
$ 95.45 | |||||
| 27 | W10636716 | Cover, Unit (Replaces: W10384413) |
|
$ 94.74 | |||||
| 28 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 29 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 30 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 10.96 | |||||
| 31 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.41 | |||||
| 32 | WPW10238092 | Tube, Water (Replaces: W10238092) |
|
Immediately | $ 119.02 | ||||
| 33 | WPW10238100 | Valve, Inlet (Replaces: W10238100) |
|
Immediately | $ 189.50 | ||||
| 14A | WPW10521409 | Center Hinge, Right Hand (Replaces: W10363677) |
|
Immediately | $ 34.40 | ||||
| 1A | 2225623 | Icemaker Service Sheet |
|
- | |||||
| 20A | W11252732 | Filler, Corner (black) (Replaces: W10283960) |
|
$ 11.76 | |||||
| 20B | W10851579 | Filler, Corner (grey) (Replaces: W10283961) |
|
Immediately | $ 6.80 | ||||
| 21A | WPW10353933 | Grille (black) (Replaces: W10353933) |
|
$ 146.52 | |||||
| 21B | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 146.81 | ||||
| 25A | W10465764 | Cover, Hinge (right Hand (white)) (Replaces: W10370395) |
|
$ 19.36 | |||||
| 25B | W10465771 | Cover, Hinge (left Hand (black)) |
|
$ 17.78 | |||||
| 25C | W10465770 | Cover, Hinge (right Hand (black)) (Replaces: W10406591) |
|
$ 20.49 | |||||
| 25D | W10465768 | Cover, Hinge (left Hand (grey)) |
|
$ 18.48 | |||||
| 25E | W10406928 | Cover, Hinge (right Hand (grey)) |
|
$ 18.29 | |||||
| 2A | W11573371 | Hinge, Top Right Hand (Replaces: W10370393) |
|
Immediately | $ 22.38 | ||||
| 3A | WPW10359255 | Roller, Front (right Hand) (Replaces: W10359255) |
|
Immediately | $ 90.58 | ||||
| 8A | W10353930 | Cover, Toe Grille (black) |
|
$ 76.81 | |||||
| 8B | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 76.95 |
