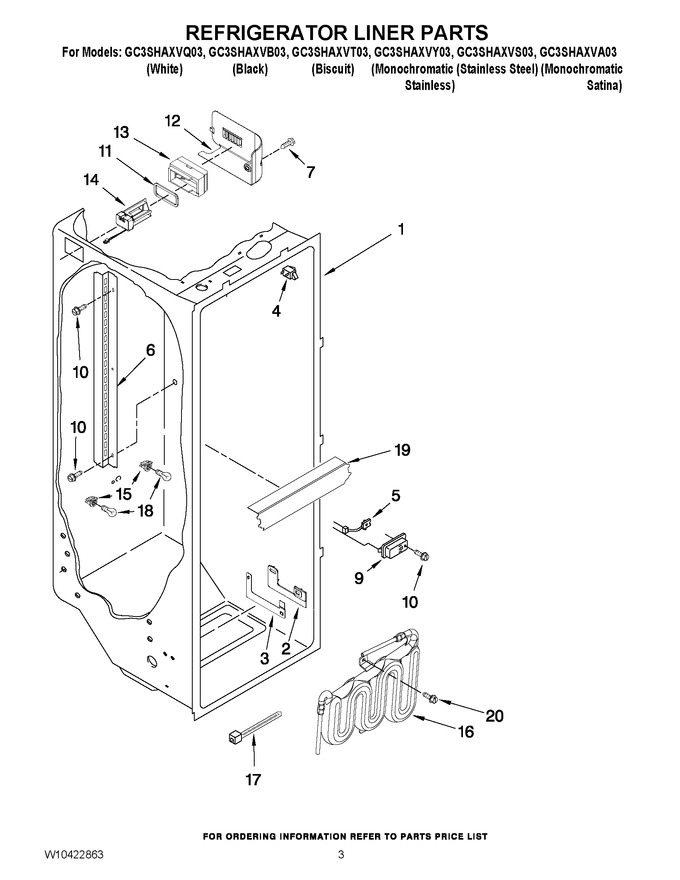

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	2223524		Escutcheon, Meat Pan Control		Appelez-nous	-
3	2223339		Slide Meat Pan Control		Appelez-nous	-
4	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 37.23
5	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
6	2319866		Ladder, Shelf				$ 22.16
7	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
9	WP2317844		Cover, Thermistor   (Replaces: 2317105)				$ 10.84
10	WP489478		Screw   (Replaces: 489478)				$ 7.75
11	2304597		Gasket, Air Baffle				$ 103.97
12	2223403		Cover, Air Baffle				$ 72.16
13	2224076		Air Diffuser Assembly				$ 43.38
14	WP2220377		Air Baffle   (Replaces: 2220377)			Immediately	$ 362.90
15	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
16	WPW10276792		Reservoir   (Replaces: 2307107)				$ 137.57
17	WP2205813		Strap   (Replaces: 2205813)				$ 7.72
18	W11679940		Light Bulb   (Replaces: W10311505)			Immediately	$ 11.30
19	2223663		Light Lens				$ 107.10
20	W10080380		Screw		Appelez-nous	-
