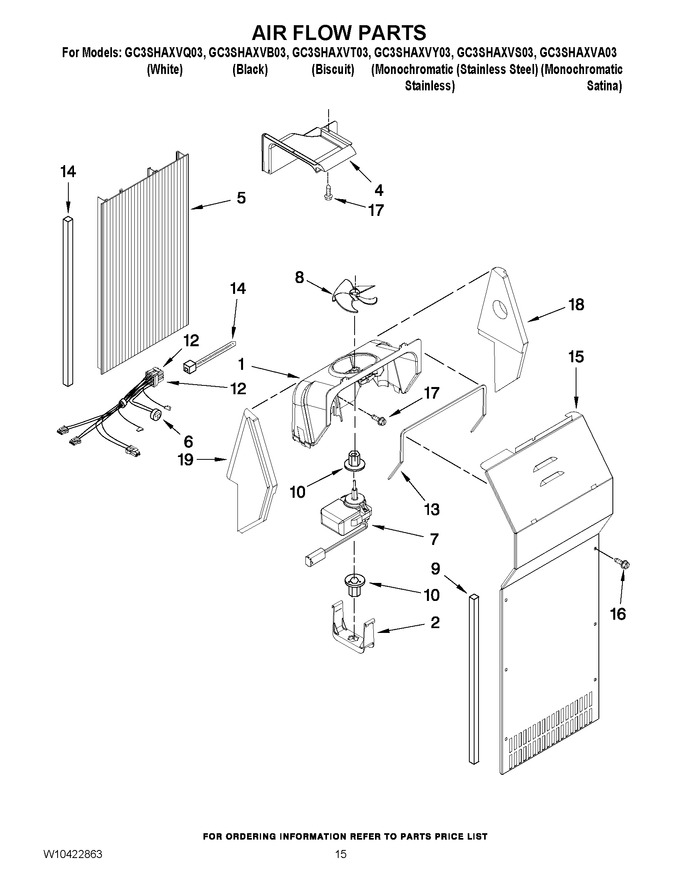

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 111.97
2	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 151.69
4	W10256500		Air Duct, Upper		Appelez-nous	-
5	2223771		Air Duct Freezer		Appelez-nous	-
6	WPW10225581		Bi-metal, Defrost   (Replaces: W10225581)			Immediately	$ 50.77
7	2259385		Fan Motor				$ 84.74
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 82.80
10	W11669856		Fan Grommet   (Replaces: 2223986)			Immediately	$ 15.17
12	W10297478		Harness, Fan Evaporator (includes No.6)				$ 110.63
13	WP2155789		Gasket Cover   (Replaces: 2155789)				$ 7.79
14	4388500		Gasket   (Replaces: 2203876)				$ 90.39
15	2223413		Cover, Evaporator (includes No.9)		Appelez-nous	-
16	4389654		Screw (6)   (Replaces: 8281159)				$ 13.89
17	WP489478		Screw   (Replaces: 489478)				$ 7.75
18	2223395		Support, R.s		Appelez-nous	-
19	4388358		Support, L.s.   (Replaces: 2203596)				$ 31.16
