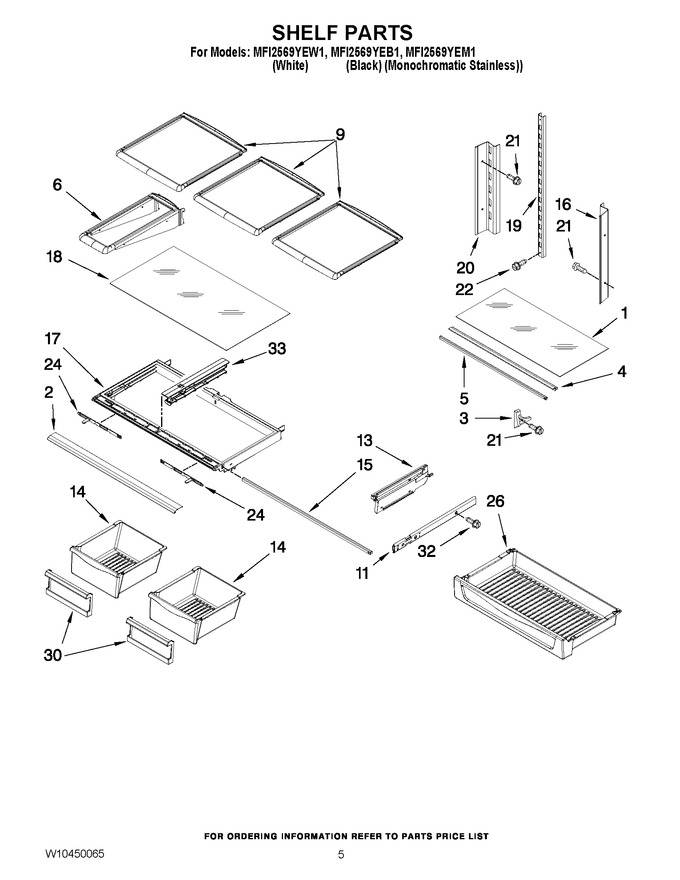

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP12204826 | Glass, Pantry (Replaces: 12204826) |
|
$ 254.08 | |||||
| 2 | WPW10231345 | Trim, Crisper (Replaces: W10231345) |
|
$ 137.67 | |||||
| 3 | WP13062602 | Support,crisper(2) (Replaces: 13062602) |
|
$ 84.87 | |||||
| 4 | W11812285 | Support, Pantry(2) (Replaces: 12655902SP) |
|
$ 53.33 | |||||
| 5 | WP12227305WD | Brace, Pantry (2) (Replaces: 12227305WH) |
|
$ 108.36 | |||||
| 6 | W11197490 | Shelf, Mini (Replaces: 12885501N) |
|
$ 242.05 | |||||
| 9 | W11402525 | Shelf, Glide (3) (Replaces: 12883507) |
|
$ 234.44 | |||||
| 11 | W10346889 | Runner, Cab (left) |
|
- | |||||
| 11 | W10346888 | Runner, Cab (right) |
|
- | |||||
| 13 | W10395615 | Endcap, Pantry (right) |
|
$ 26.62 | |||||
| 13 | W10395616 | Endcap, Pantry (left) |
|
$ 25.43 | |||||
| 14 | WP67004515 | Pan, Crisper (2) (Replaces: 12804601SP) |
|
Immediately | $ 176.72 | ||||
| 15 | WP12642303WD | Brace, Crisper (Replaces: 12642303WD) |
|
$ 112.26 | |||||
| 16 | W10251965 | Ladder, Side Rh |
|
$ 31.08 | |||||
| 17 | WPW10329866 | Frame, Crisper (Replaces: W10329866) |
|
$ 226.44 | |||||
| 18 | WP67006704 | Glass, Crisper Cover (Replaces: 12204824) |
|
$ 212.77 | |||||
| 19 | W10273464 | Ladder, Center |
|
Immediately | $ 30.19 | ||||
| 20 | W10251968 | Ladder, Side Lh |
|
$ 27.38 | |||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 22 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.79 | |||||
| 24 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 26 | WPW10330534 | Drawer, Pantry (Replaces: W10330534) |
|
$ 184.18 | |||||
| 30 | WP67005923 | Front-crisper (Replaces: 12802602SP) |
|
$ 79.13 | |||||
| 32 | W10185612 | Screw |
|
$ 7.08 | |||||
| 33 | WPW10326469 | Rail-center-crspr. (Replaces: W10326469) |
|
Immediately | $ 33.37 |
