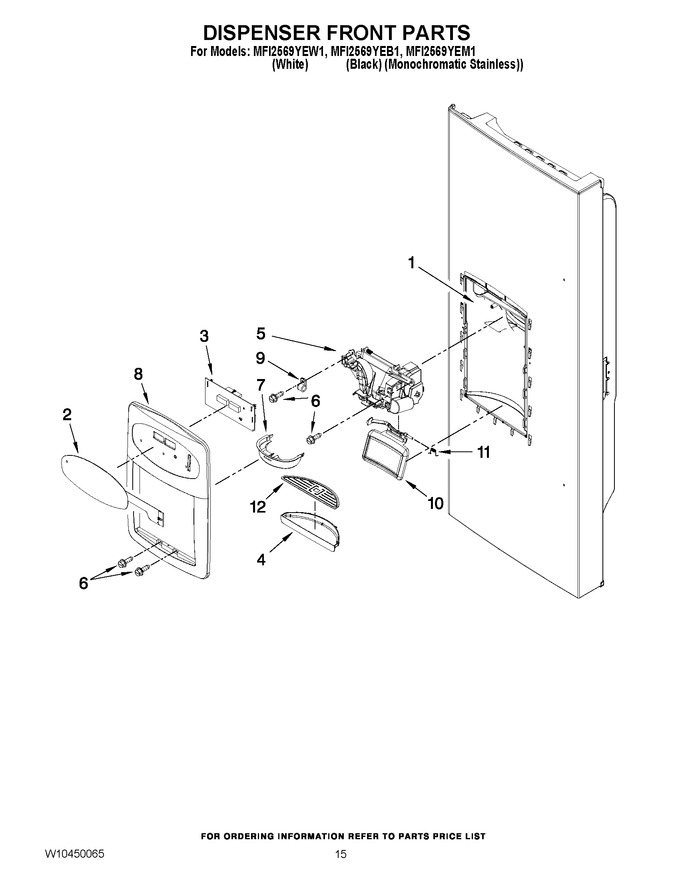

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10776981 | Keyboard (black) (Replaces: W10316105) |
|
$ 339.56 | |||||
| 2 | W10740217 | Keyboard (stainless) (Replaces: W10316089) |
|
Immediately | $ 236.00 | ||||
| 2 | W10776982 | Keyboard (white) (Replaces: W10316103) |
|
$ 339.56 | |||||
| 3 | 67006294 | Board, L.v. (Replaces: 12939601) |
|
$ 270.03 | |||||
| 4 | W10142274 | Sump, Dispenser (white) |
|
$ 57.88 | |||||
| 4 | W10776981 | Sump, Dispenser (black) (Replaces: W10316105) |
|
$ 339.56 | |||||
| 4 | W10740217 | Sump, Dispenser (stainless) (Replaces: W10316089) |
|
Immediately | $ 236.00 | ||||
| 5 | WP13005705 | Chute, Ext/yoke (includes Switch) (stainless) (Replaces: 13005705) |
|
Immediately | $ 329.03 | ||||
| 5 | WP13005703W | Chute, Ext/yoke (includes Switch) (white) (Replaces: 13005703W) |
|
$ 323.10 | |||||
| 5 | WP13005703B | Chute, Ext/yoke (includes Switch) (black) (Replaces: 13005703B) |
|
$ 324.63 | |||||
| 6 | 67006425 | Screw (3) (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 7 | 67006295 | Ring, Target (Replaces: 12958301) |
|
$ 55.57 | |||||
| 8 | WPW10310688 | Facade, Dispenser (stainless) (Replaces: W10310688) |
|
$ 232.13 | |||||
| 8 | WPW10164982 | Facade, Dispenser (black) (Replaces: W10164982) |
|
$ 234.44 | |||||
| 8 | W10142272 | Facade, Dispenser (white) |
|
$ 266.28 | |||||
| 9 | M0108106 | Clamp, Tube |
|
$ 69.95 | |||||
| 10 | W10170832 | Yoke/pad Assy. (black) |
|
$ 85.18 | |||||
| 10 | W10170831 | Yoke/pad Assy. (white) |
|
$ 83.80 | |||||
| 10 | WPW10185233 | Yoke Pad Assy. (stainless) (Replaces: W10185233) |
|
$ 85.43 | |||||
| 11 | WP12565502 | Spring (Replaces: 12565502) |
|
$ 8.43 | |||||
| 12 | W10142275 | Grille, Sump |
|
$ 29.42 |
