01 - Coil Parts

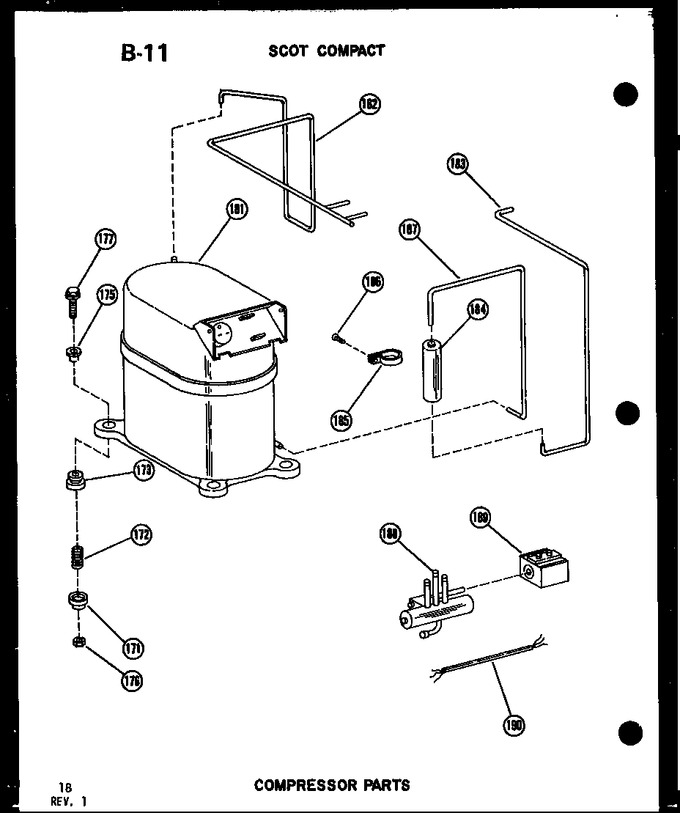

02 - Compressor Parts
03 - Exterior Parts
04 - Interior Parts
05 - Interior Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 171 | A4695202 | Grommet |
|
- | |||||
| 172 | A4694802 | Spring |
|
- | |||||
| 173 | A4695101 | Grommet |
|
- | |||||
| 175 | A3306201 | Sleeve-tee |
|
- | |||||
| 176 | A3306301 | Nut |
|
- | |||||
| 177 | A4695702 | Bolt-comp Mtg |
|
- | |||||
| 181 | D5397201 | Compressor, Copeland Rrh2-0100 |
|
- | |||||
| 182 | C5914601 | Suction Tube |
|
- | |||||
| 183 | C5914401 | Suction Tube |
|
- | |||||
| 184 | C5885804 | Muffler |
|
- | |||||
| 185 | A4696502 | Muffler Clamp Assy |
|
- | |||||
| 186 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 187 | C5914501 | Discharge Tube |
|
- |
