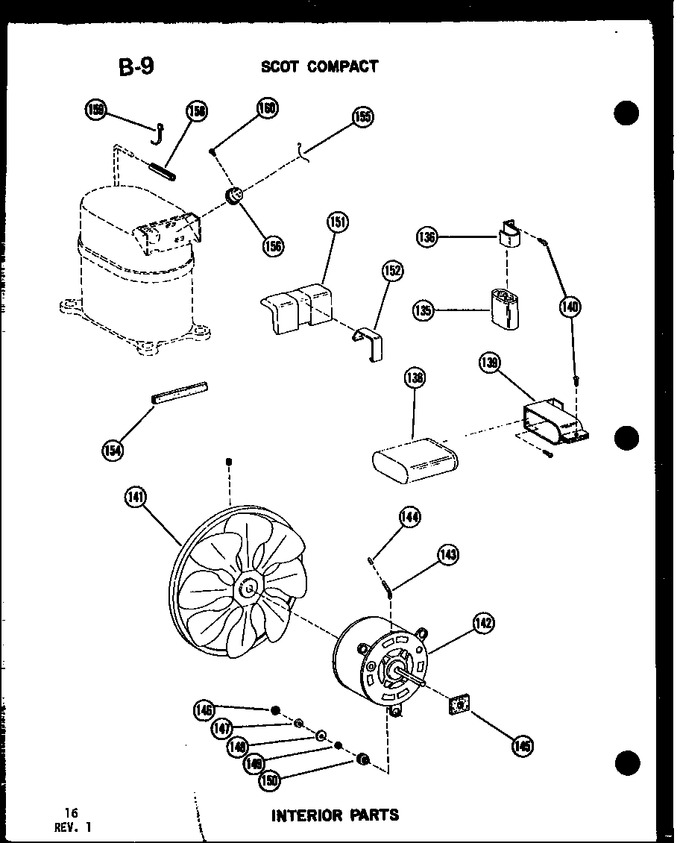

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 135 | D5523009 | Capacitor, Fan Motor, Run |
|
- | |||||
| 136 | B4150102 | Clamp |
|
- | |||||
| 138 | D5523017 | Capacitor, Compressor Run |
|
- | |||||
| 139 | B4762303 | Strap-capacitor |
|
- | |||||
| 140 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 8.25 | ||||
| 141 | D5392901 | Fan Blade |
|
- | |||||
| 142 | C5299001 | Motor Fan |
|
- | |||||
| 143 | A4597701 | Oil Tube |
|
- | |||||
| 144 | A3032601 | Rivet Plastic |
|
- | |||||
| 145 | B5107608 | Gasket |
|
- | |||||
| 146 | M0282009 | Nut |
|
$ 14.07 | |||||
| 147 | M0270504 | Washer |
|
- | |||||
| 148 | M0270519 | Washer |
|
- | |||||
| 149 | M0270529 | Washer |
|
- | |||||
| 150 | M0500501 | Grommet |
|
- | |||||
| 151 | A4610001 | Cover, Compressor Terminal |
|
- | |||||
| 152 | A4610101 | Spring |
|
- | |||||
| 154 | A3030307 | Gasket |
|
- | |||||
| 155 | B5126701 | Spring |
|
- | |||||
| 156 | D4976642 | Overload |
|
- | |||||
| 158 | B5165101 | Dampener Tube-per Ft |
|
- | |||||
| 159 | M0321204 | Wire Tie |
|
- | |||||
| 160 | M0206116 | Screw |
|
- |
