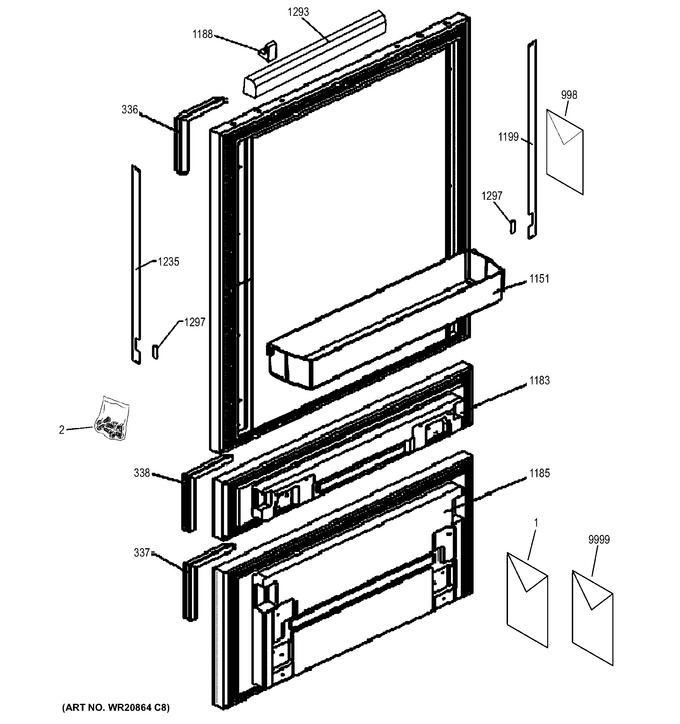

1 - Doors
2 - Cabinet
3 - Evaporator Instructions
4 - Shelves
5 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-60615 | Owners Manual |
|
- | |||||
| 1 | 31-51808 | Mini Manual |
|
- | |||||
| 2 | WR02X21027 | Hardware Anti Tip |
|
- | |||||
| 336 | WR24X10270 | Magnetic Gasket-ff |
|
- | |||||
| 337 | WR24X10271 | Magnetic Gasket-fz |
|
- | |||||
| 338 | WR24X10272 | Magnetic Gasket Ice |
|
- | |||||
| 998 | WR49X10264 | Panel Installation Kit |
|
- | |||||
| 1151 | WR17X12960 | Door Bin Ff |
|
- | |||||
| 1183 | WR78X12717 | Ice Drawer Asm |
|
- | |||||
| 1185 | WR78X12716 | Fz Door Asm |
|
- | |||||
| 1188 | WR11X10028 | Door Magnet Holder |
|
- | |||||
| 1199 | WR02X13466 | Shelf Cantilever Holder |
|
- | |||||
| 1235 | WR02X13478 | Door Container Guide L |
|
- | |||||
| 1293 | WR13X10979 | Panel Holder Cover |
|
- | |||||
| 1297 | WR32X10902 | Door Tray Guide Cover |
|
- | |||||
| 9999 | WR86X10074 | Kit Asm Service R600a |
|
- | |||||
| 9999 | WR86X10072 | Kit Service R600a |
|
- |
