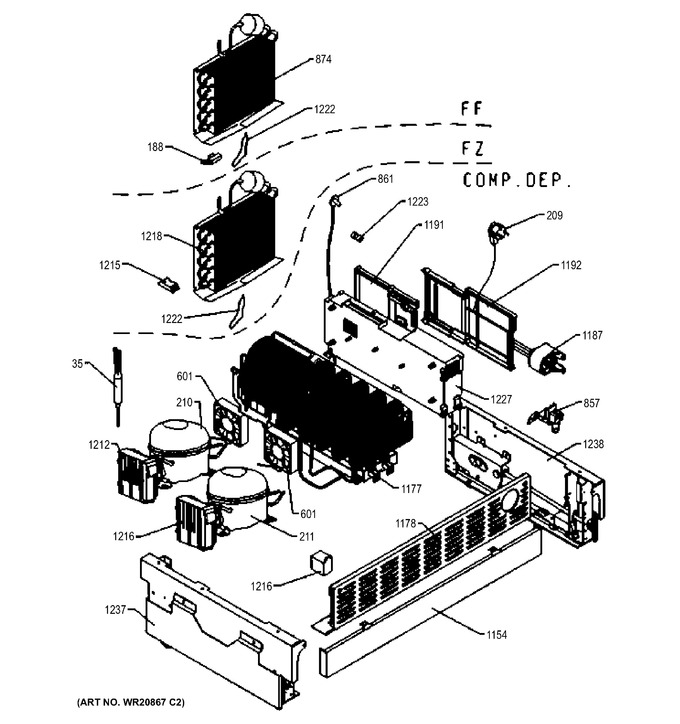

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
188	WR23X10704		Thermal Fuse		Appelez-nous	-
209	WR23X10705		Supply Cord		Appelez-nous	-
210	WR87X10227		Compressor Ff		Appelez-nous	-
211	WR87X10228		Compressor Fz		Appelez-nous	-
601	WR60X10328		Condenser Fan Ff		Appelez-nous	-
857	WR57X10097		Water Valve		Appelez-nous	-
861	WR02X13457		Fill Tube Asm		Appelez-nous	-
874	WR85X10138		Evaporator Asm - Ff		Appelez-nous	-
1154	WR79X10063		Kick Plate		Appelez-nous	-
1177	WR84X10101		Condenser Asm		Appelez-nous	-
1178	WR13X10912		Compressor Comp.cover Fr		Appelez-nous	-
1187	WR17X12956		Water Filter Head Asm		Appelez-nous	-
1191	WR32X10841		Electronics Cover Rh		Appelez-nous	-
1192	WR32X10842		Electronics Cover Lh		Appelez-nous	-
1212	WR55X11081		Inverter - Ff		Appelez-nous	-
1215	WR02X13463		Airblock Rh		Appelez-nous	-
1216	WR55X11082		Inverter - Fz		Appelez-nous	-
1218	WR85X10139		Evaporator Asm - Fz		Appelez-nous	-
1222	WR02X13470		Heater, Drain Defrost"		Appelez-nous	-
1223	WR02X13473		Connector, Fill Tube"		Appelez-nous	-
1227	WR55X11083		Main Control Board		Appelez-nous	-
1237	WG03A00596		Base Channel Asm Left   (Replaces: WR02X13598)				$ 823.95
1238	WR02X13599		Base Channel Asm Right		Appelez-nous	-
	WG03A00024		Kit R600a Recovery				$ 1,777.20
	WG03A00511		Euro Hndl Kit Mono 30 Rf				$ 858.51
	WG03A00582		Kit R600a Gauges Tools				$ 5,148.91
	WG03F00150		Compresseur				$ 866.05
	WG03F00151		Compressor Fz		Appelez-nous	-
	WG03F00196		Control Unit				$ 1,121.19
	WG03A04618		Ice Maker   (Replaces: WG03F00348)			Immediately	$ 212.88
	WG03F00365		Inverseur				$ 805.00
	WG03F00366		Inverter - Fz				$ 583.44
	WG03F00414		Main Control Board				$ 2,278.02
	WG03F03147		Ice Drawer Slide Lh				$ 194.72
	WG03F03148		Ice Drawer Slide Rh				$ 189.04
	WG03F03277		Main Control Board				$ 1,489.73

    View Diagram in Separate Window       Print Part List
