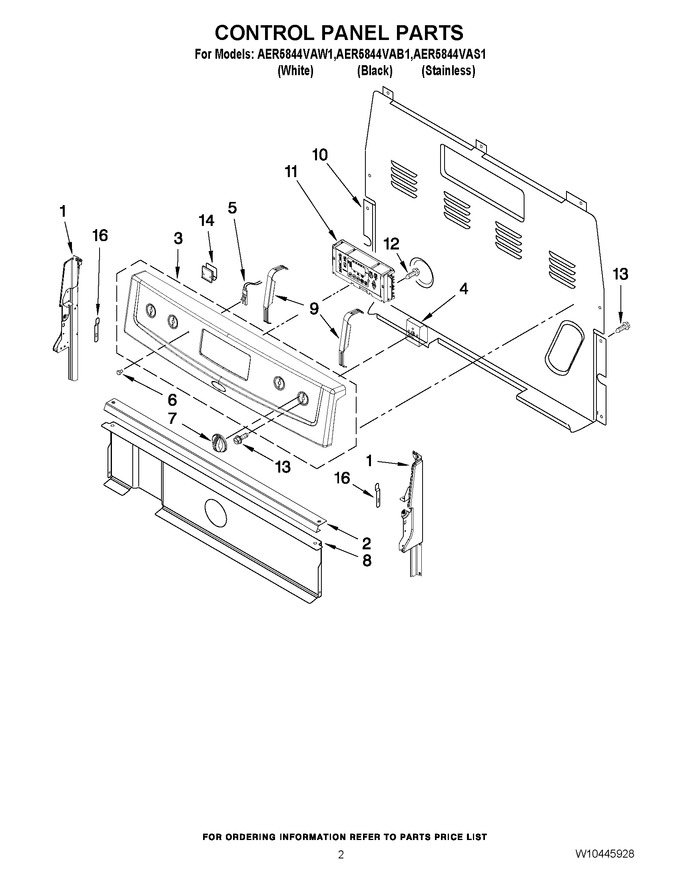

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Left Hand)   (Replaces: W10184433)				$ 40.43
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 57.93
1	W11219664		Endcap (black Left Hand)   (Replaces: W10184437)				$ 146.50
1	W11219665		Endcap (black Right Hand)   (Replaces: W10184438)				$ 40.44
2	W10525121		Bracket, Console   (Replaces: W10182322)				$ 94.14
3	W10170018		Panel, Control (stainless)		Appelez-nous	-
3	W10170015		Panel, Control (white)				$ 64.69
3	W10170016		Panel, Control (black)				$ 30.40
4	WP3149400		Switch, Infinite (right Front)   (Replaces: 3148954)			Immediately	$ 90.51
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148951)			Immediately	$ 52.39
4	WPW10434452		Switch, Infinite (left Front (dual))   (Replaces: W10434452)			Immediately	$ 140.84
5	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 86.31
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 6.26
7	W10119706		Knob, Infinite (black)				$ 50.38
7	W10119705		Knob, Infinite (white)			Immediately	$ 50.64
8	W10134247		Shield, Heat			Immediately	$ 341.73
9	W11230932		Bracket, Mounting, Eoc   (Replaces: W10138683)			Immediately	$ 80.77
10	WP8272473		Cover, Rear   (Replaces: 8272473)				$ 208.61
11	WPW10476695		Control, Range (white)   (Replaces: W10271723)				$ 501.48
11	WPW10476695		Control, Range (black)   (Replaces: W10271724)				$ 501.48
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
13	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.19
14	WP8273564		Clip, Cover   (Replaces: 8273564)				$ 12.06
16	3196200		Clip, Spring				$ 9.95
