01 - Cooktop Parts
02 - Control Panel Parts

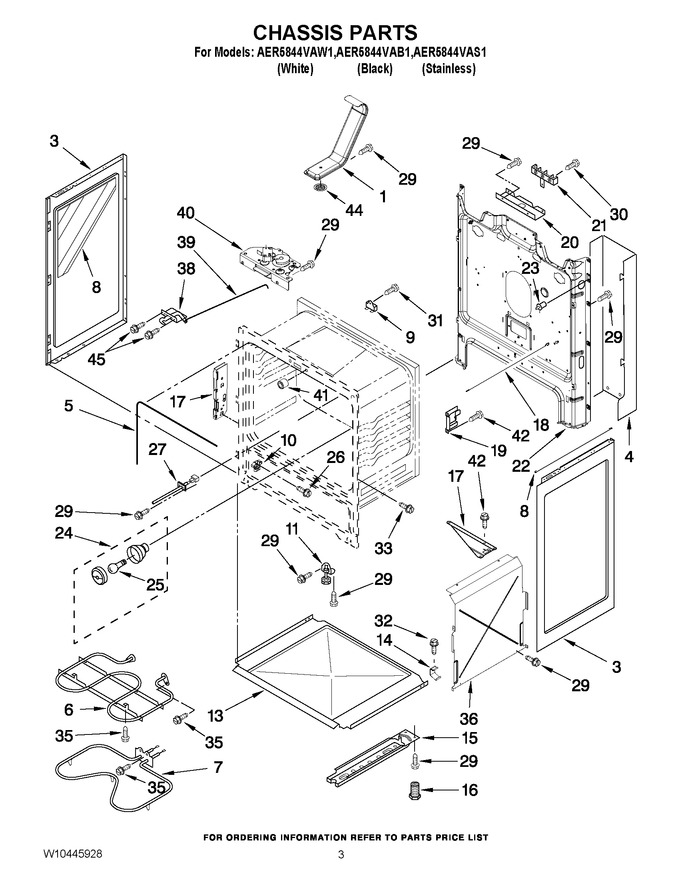

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10134285 | Vent Tube Asmbly (Replaces: W10134285) |
|
Immediately | $ 250.48 | ||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 164.83 | ||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 148.71 | |||||
| 4 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 132.95 | |||||
| 5 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 6 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 154.62 | ||||
| 7 | WPW10308477 | Element, Bake (hidden) (Replaces: W10308477) |
|
Immediately | $ 71.86 | ||||
| 8 | W10727426 | Rod, Insulation Retainer (Replaces: W10196451) |
|
Immediately | $ 80.62 | ||||
| 9 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 47.71 | ||||
| 10 | WPW10114344 | Glide, Drwr Top (Replaces: W10114344) |
|
Immediately | $ 8.16 | ||||
| 11 | WPW10341186 | Foot, Front (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 13 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 99.39 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 46.11 | ||||
| 15 | W11818353 | Rail, Base (Replaces: 9760314) |
|
$ 59.68 | |||||
| 16 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 7.85 | ||||
| 17 | W11447673 | Bracket, Anti-tip (Replaces: 3192830) |
|
$ 31.82 | |||||
| 18 | 9757239 | Rod, Door Switch |
|
$ 91.78 | |||||
| 19 | W10404688 | Support, Oven (Replaces: W10355173) |
|
$ 16.85 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WPW10281322 | Block, Terminal (Replaces: W10281322) |
|
$ 8.45 | |||||
| 22 | 8274034 | Back, Main |
|
$ 123.95 | |||||
| 23 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 144.44 | ||||
| 24 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 26 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 29 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 30 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.95 | |||||
| 31 | 3196172 | Screw |
|
Immediately | $ 12.83 | ||||
| 32 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.82 | ||||
| 33 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.76 | |||||
| 35 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.82 | ||||
| 36 | W10450380 | Retainer, Side (Replaces: 9758238) |
|
- | |||||
| 38 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 244.15 | |||||
| 39 | W10078380 | Rod, Latch |
|
$ 90.39 | |||||
| 40 | WPW10107820 | Latch Asy, Rear (Replaces: W10107820) |
|
$ 294.81 | |||||
| 41 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 53.39 | ||||
| 42 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 44 | 9761301 | Screen - Catalyst |
|
$ 140.86 | |||||
| 45 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: W10208653) |
|
Immediately | $ 55.47 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272612) |
|
$ 106.09 |
