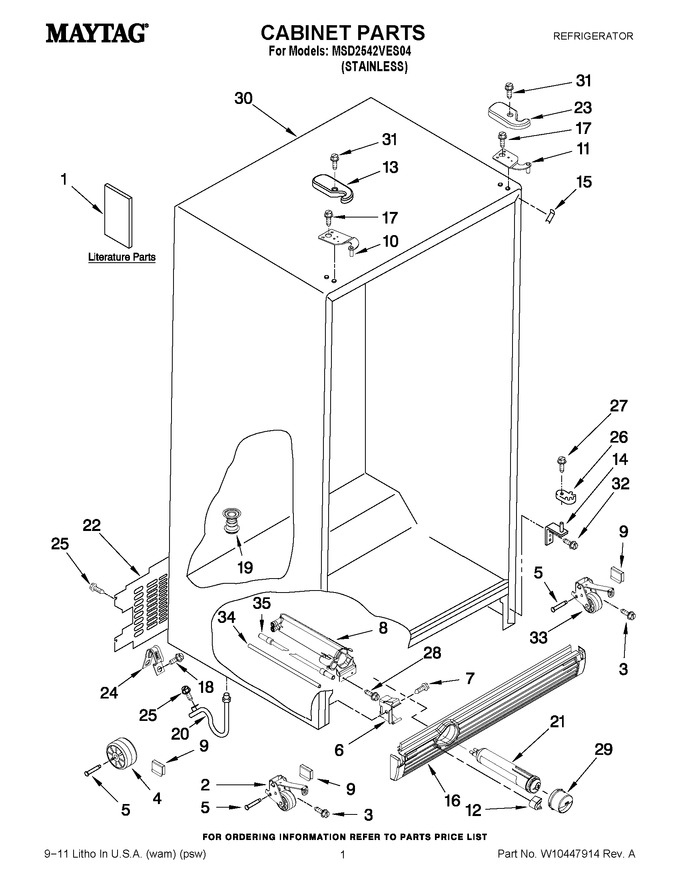

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10158909 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10154390 | Instruction Sheet (door Removal) |
|
- | |||||
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10153841 | Energy Guide |
|
- | |||||
| 1 | W10321474 | Use & Care Guide |
|
- | |||||
| 2 | WPW10304660 | Front Roller, Left (Replaces: W10304660) |
|
Immediately | $ 73.90 | ||||
| 3 | W11544561 | Screw (Replaces: 2152958) |
|
$ 14.75 | |||||
| 4 | WPW10475495 | Roller, Rear (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 19.12 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | WPW10121138 | Housing, Water Filter (Replaces: W10121138) |
|
Immediately | $ 112.91 | ||||
| 9 | WP2174706 | Clip, Axle (Replaces: 2174706) |
|
$ 11.53 | |||||
| 10 | W10287685 | Hinge Top Fc |
|
$ 63.39 | |||||
| 11 | W10287684 | Hinge, Top Rc |
|
$ 46.69 | |||||
| 12 | WP2260503B | Button, Water Filter (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 13 | WP2203407B | Hinge Cover (fc) (Replaces: 2203407B) |
|
$ 20.50 | |||||
| 14 | W10251408 | Hinge Bottom (2) |
|
$ 59.74 | |||||
| 15 | W11252732 | Filler, Wrapper (Replaces: W10283960) |
|
$ 13.07 | |||||
| 16 | WPW10311033 | Grille (Replaces: W10283949) |
|
$ 184.91 | |||||
| 17 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 18 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 19 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 20 | W11512417 | Extension Tube (Replaces: W10153550) |
|
$ 36.53 | |||||
| 21 | EDR3RXD1B | Water Filter (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 22 | WP2188755 | Cover, Unit (Replaces: 2188735) |
|
$ 142.71 | |||||
| 23 | WP2203408B | Hinge Cover (rc) (Replaces: 2203408B) |
|
$ 19.56 | |||||
| 24 | 549193 | Clamp-service Cord |
|
$ 14.06 | |||||
| 25 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 26 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 27 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 | |||||
| 28 | WP489500 | Screw (Replaces: 489500) |
|
$ 8.17 | |||||
| 29 | WP2260518B | Cap, Water Filter (Replaces: 2260502B) |
|
Immediately | $ 28.26 | ||||
| 30 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 31 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 32 | WP489497 | Screw (4) (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 33 | WPW10304659 | Front Roller, Right (Replaces: W10304659) |
|
Immediately | $ 68.52 | ||||
| 34 | WPW10350006 | Tube, Filter Outlet (Replaces: 2255012) |
|
$ 121.32 | |||||
| 35 | W10281289 | Tube, Filter Inlet |
|
$ 57.80 |
