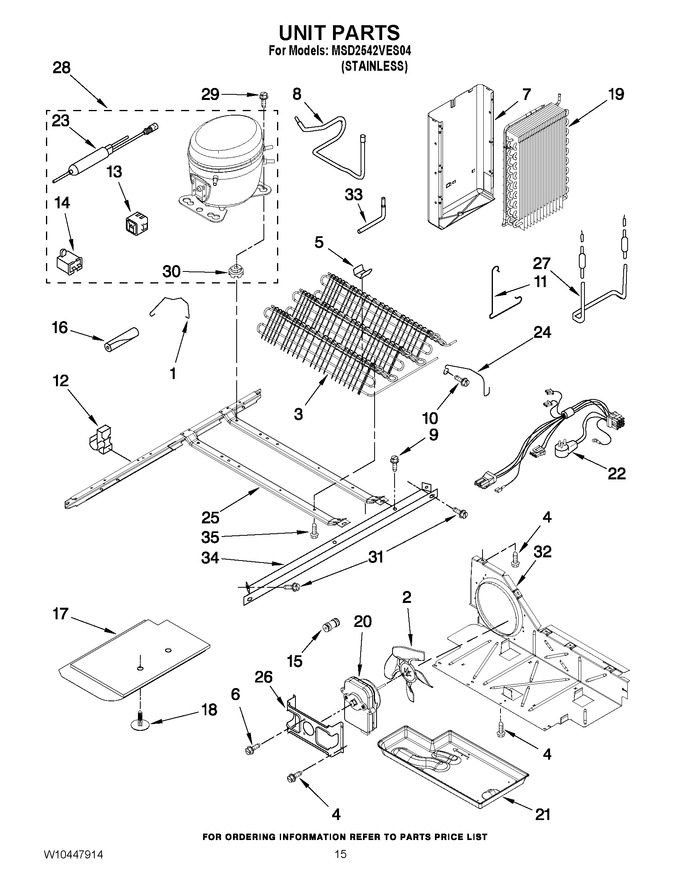

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10339879		Strap   (Replaces: 2263990)				$ 8.30
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly   (Replaces: W10222348)				$ 323.45
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 19.38
6	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
7	W10194475		Heat Shield And Drain Pan		Appelez-nous	-
8	2205765		Tube, Suction				$ 36.04
9	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	WP489478		Screw   (Replaces: 489478)				$ 8.18
11	2161324		Clip, Defrost Heater		Appelez-nous	-
12	2208280		Clip, Wire & Tube		Appelez-nous	-
13	W10896198		Start-device, Combination (start Relay And Overload) (service)   (Replaces: 2304884)				$ 195.21
13	WPW10189190		Start-device, Combination (start Relay And Overload) (production)   (Replaces: W10197427)			Immediately	$ 131.29
14	WPW10662129		Capacitor (service)   (Replaces: 2264017)			Immediately	$ 58.86
15	WPW10334458		Connector, Water Tube   (Replaces: W10334458)				$ 22.67
16	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
17	2304899		Unit Cover, Bottom		Appelez-nous	-
18	489396		Clip				$ 11.26
19	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
20	WP2188874		Motor, Fan   (Replaces: 2188874)			Immediately	$ 113.96
21	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
22	WPW10309395		Harness, Unit   (Replaces: W10309395)				$ 308.35
23	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
23	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
24	2260517		Guard, Fan		Appelez-nous	-
25	W10196321		Frame, Unit Mounting		Appelez-nous	-
26	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.93
27	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
28	W10139462		Compressor (includes Items 13, 14, 23, & 30)   (Replaces: W10120459)				$ 668.33
29	876811		Screw   (Replaces: 489373)				$ 7.79
30	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 7.30
30	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.79
31	489340		Screw		Appelez-nous	-
32	W10332806		Air Baffle				$ 102.82
33	2325479		Process Tube		Appelez-nous	-
34	W10196313		Unit Mounting Rail		Appelez-nous	-
35	W11544659		Screw   (Replaces: 8281232)				$ 14.35
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
