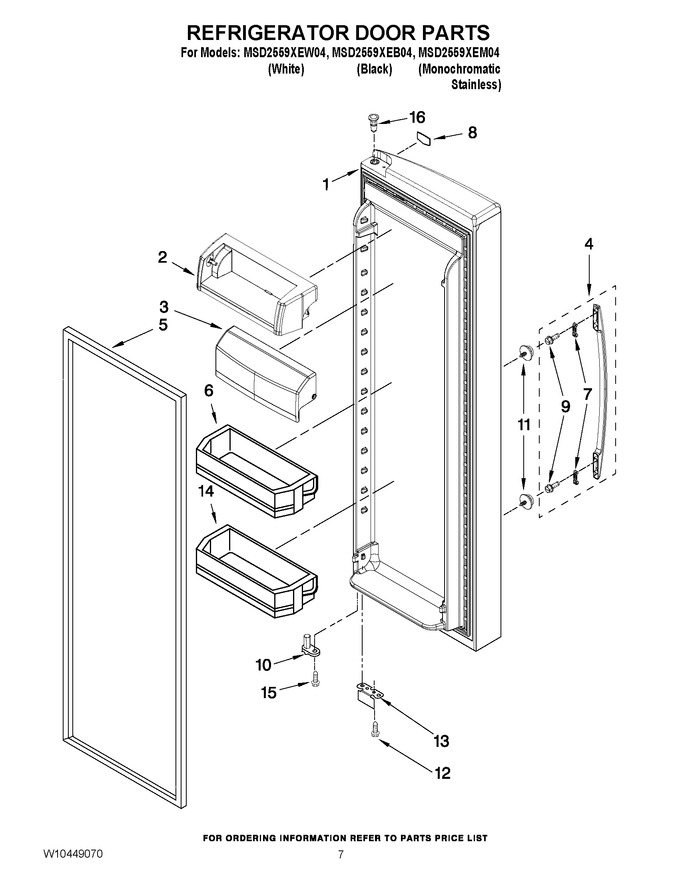

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10317497		Refrigerator Door (includes Item 5) (black)		Appelez-nous	-
1	W10318389		Refrigerator Door (includes Item 5) (mono Stainless)		Appelez-nous	-
1	W10189214		Refrigerator Door (includes Item 5) (white)		Appelez-nous	-
2	2255420		Door, Compartment				$ 49.86
3	2255421		Dairy Door				$ 34.76
4	WPW10170743		Handle (includes Items 7 & 9) (stainless Steel)   (Replaces: W10170743)				$ 365.52
4	W10296255		Handle (includes Items 7 & 9) (black)		Appelez-nous	-
4	W10296254		Handle (includes Items 7 & 9) (white)		Appelez-nous	-
5	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
5	WPW10136734		Door Gasket, Magnetic (apollo Gray)   (Replaces: 2326338)				$ 335.39
5	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
6	WPW10321304		Door Bin   (Replaces: W10321303)			Immediately	$ 44.73
7	WP2255411		Clip, Handle   (Replaces: 2255411)				$ 36.55
8	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
9	W10176593		Screw 10-16 X 1/2 (for Stainless Models)				$ 14.70
9	W10324317		Screw 10-16 X 1/2 (for White & Black Models)		Appelez-nous	-
10	WP2182179		Door Closer Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WPW10288153		Stud, Handle   (Replaces: W10288153)			Immediately	$ 9.65
12	WP489483		Screw 10-32 X 1/2   (Replaces: 489420)				$ 11.41
13	W10219808		Bracket, Door Stop (black (for Black & Stainless Models))		Appelez-nous	-
13	W10219805		Bracket, Door Stop (chrome (for White Model))		Appelez-nous	-
14	WP2156022		Door Bin, Large   (Replaces: 2156022)			Immediately	$ 72.80
15	WP3400012		Screw 10-32 X 1/2   (Replaces: 3400012)				$ 8.26
16	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
