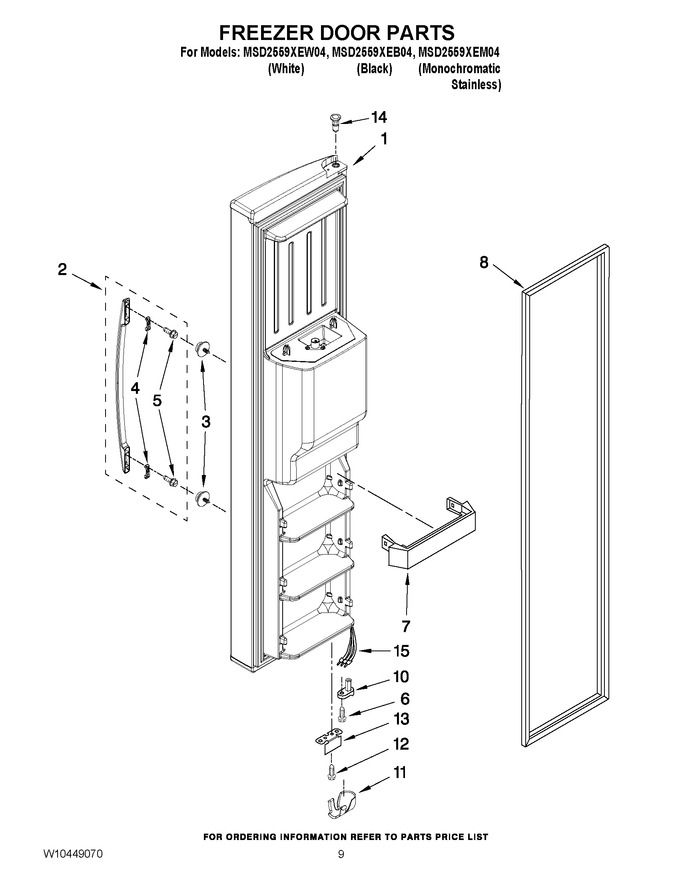

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10317487 | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | W10318317 | Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Stainless) |
|
- | |||||
| 1 | W10294123 | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | W10296254 | Handle (includes Items 4 & 5) (white) |
|
- | |||||
| 2 | WPW10170743 | Handle (includes Items 4 & 5) (stainless Steel) (Replaces: W10170743) |
|
$ 365.52 | |||||
| 2 | W10296255 | Handle (includes Items 4 & 5) (black) |
|
- | |||||
| 3 | WPW10288153 | Stud, Handle (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 4 | WP2255411 | Clip, Handle (Replaces: 2255411) |
|
$ 36.55 | |||||
| 5 | W10324317 | Screw 10-32 X 1/2 (for White & Black Models) |
|
- | |||||
| 5 | W10176593 | Screw 10-32 X 1/2 (for Stainless Model) |
|
$ 14.70 | |||||
| 6 | WP3400012 | Screw 10-32 X 1/2 (Replaces: 3400012) |
|
$ 8.26 | |||||
| 7 | WP2309718 | Shelf Bin (Replaces: 2309718) |
|
$ 61.49 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2221314) |
|
$ 332.49 | |||||
| 8 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221303) |
|
$ 325.70 | |||||
| 8 | W10136735 | Door Gasket, Magnetic (apollo Gray) (Replaces: 2326339) |
|
$ 254.84 | |||||
| 10 | 2323535 | Door Closer, Upper Cam |
|
$ 33.97 | |||||
| 11 | 2323581 | Thimble Cover |
|
- | |||||
| 12 | WP489483 | Screw 10-32 X 1/2 (Replaces: 489420) |
|
$ 11.41 | |||||
| 13 | W10219806 | Bracket, Door Stop (chrome (for White Model)) |
|
- | |||||
| 13 | W10219810 | Bracket, Door Stop (black (for Black & Stainless Models)) |
|
- | |||||
| 14 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 8.15 | |||||
| 15 | W10295774 | Wire Assy, Door |
|
- |
