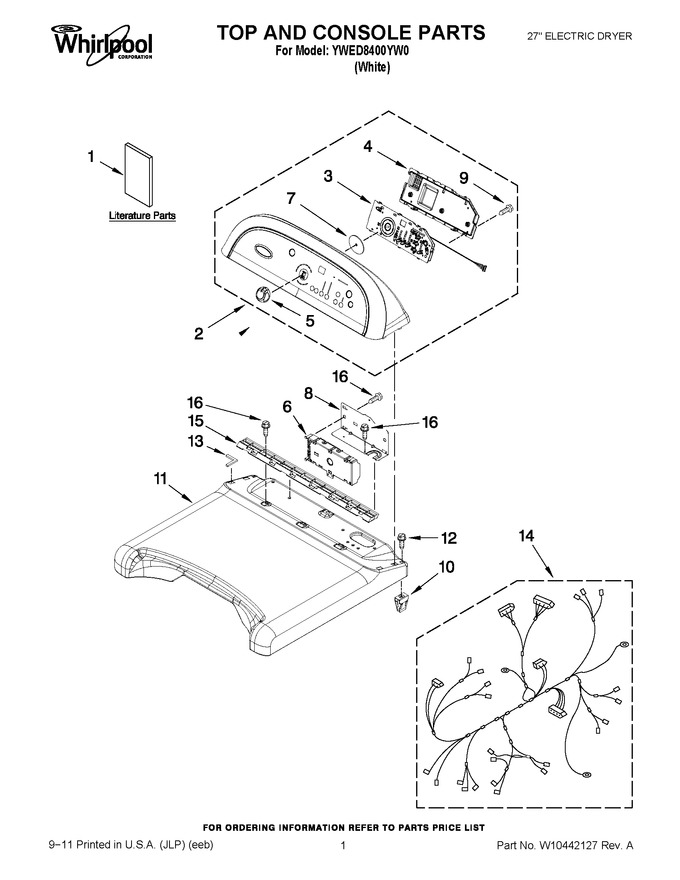

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10392126		Installation, Instruction		Appelez-nous	-
1	W10403269		Tech Sheet		Appelez-nous	-
1	W10398830		Guide, Use & Care		Appelez-nous	-
2	WPW10427048		Panel, Console   (Replaces: W10427048)				$ 346.89
3	W10388676		User Interface				$ 119.77
4	8564265		Cover, Rear (ui Assembly)				$ 142.60
5	WPW10211335		Knob, Assembly   (Replaces: W10211335)				$ 59.76
6	WPW10432259		Control Electronic   (Replaces: W10432259)				$ 392.11
7	8572039		Seal, Ui		Appelez-nous	-
8	W10211337		Bracket, Machine Controller		Appelez-nous	-
9	WP4449745		Screw, 6-19 X 1/2   (Replaces: W10003770)				$ 7.98
10	W10112673		Clip, Console				$ 9.75
11	W10211339		Top		Appelez-nous	-
12	W10131402		Screw, 8-18 X 1.37		Appelez-nous	-
13	W10185554		Foam, Top		Appelez-nous	-
14	W10393457		Harness, Electric				$ 168.46
15	8558863		Bracket, Console				$ 33.78
16	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 83.71

    View Diagram in Separate Window       Print Part List
