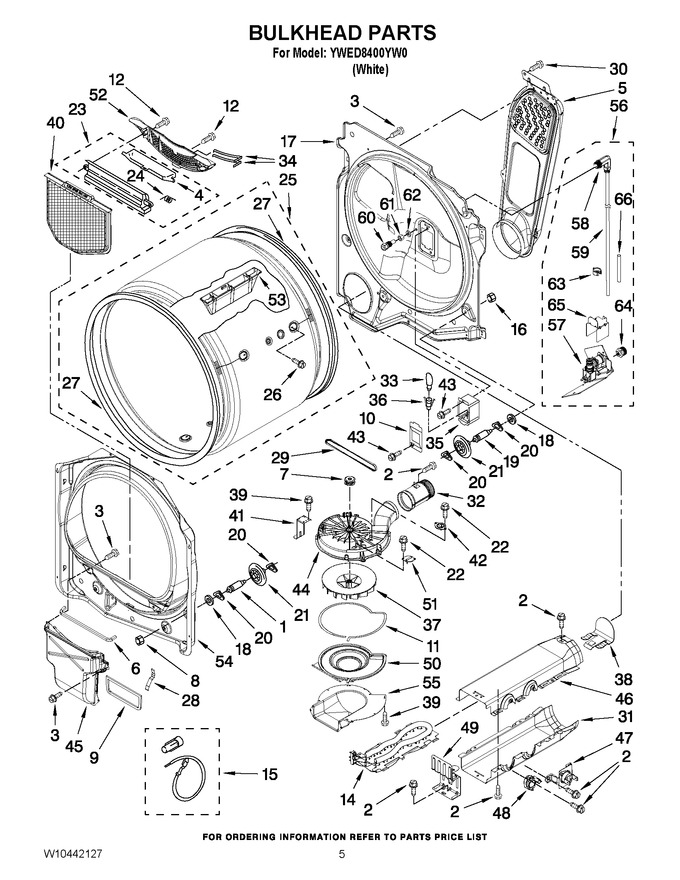

03 - Bulkhead Parts
04 - Optional Parts (not Included
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 3 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 8.25 | |||||
| 4 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 213.91 | ||||
| 5 | 8544730 | Air Duct Assembly |
|
$ 231.82 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | WP8544739 | Pulley, Blower (Replaces: 8544739) |
|
$ 133.27 | |||||
| 8 | W11812294 | Nut,3/8 X 16(r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | 8544721 | Seal, Lint Duct |
|
$ 5.65 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 11 | WP8573068 | Seal, Blower Cover (Replaces: 8573068) |
|
$ 92.58 | |||||
| 12 | WP3387230 | Screw, 10-16 X 13/16 (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 14 | W10044460 | Heater Element |
|
$ 76.64 | |||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | WPW10080190 | Nut,3/8 X 16(l.h.) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | W10139797 | Bulkhead, Rear |
|
$ 350.48 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Tri Ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | 3350424 | Screw, 10-16 X 1/2 |
|
$ 12.72 | |||||
| 23 | W11129408 | Outlet Housing Assembly (Replaces: 3394985) |
|
Immediately | $ 53.28 | ||||
| 24 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 93.47 | |||||
| 25 | W10549614 | Complete Drum Assembly (Replaces: 8557269) |
|
$ 500.41 | |||||
| 26 | W10853898 | Screw, 8-16 X 3/4 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | 280140 | Seal, Drum (Replaces: W10116344) |
|
Immediately | $ 73.88 | ||||
| 28 | 8573070 | Clip, Lint Duct |
|
$ 12.41 | |||||
| 29 | WP8544742 | Blower Belt (Replaces: 8544742) |
|
Immediately | $ 55.00 | ||||
| 30 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 31 | 8544770 | Housing Tab, Heater Box |
|
$ 75.92 | |||||
| 32 | 8544755 | Exhaust Pipe |
|
$ 43.67 | |||||
| 33 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | 3977373 | Bracket, Drum Light |
|
$ 111.08 | |||||
| 36 | W11222979 | Socket Assembly (Replaces: W10214261) |
|
Immediately | $ 118.79 | ||||
| 37 | WP8544737 | Wheel, Blower (Replaces: 8544737) |
|
Immediately | $ 154.84 | ||||
| 38 | 8544776 | Flange, Heater Box |
|
$ 19.01 | |||||
| 39 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 40 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 67.16 | |||||
| 41 | 8544741 | Bracket, Blower Housing |
|
$ 38.71 | |||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 43 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 44 | W10256512 | Housing, Blower |
|
$ 70.10 | |||||
| 45 | 8544786 | Lint Duct Assembly |
|
$ 91.17 | |||||
| 46 | WP8544769 | Housing Slot, Heater Box (Replaces: 8544769) |
|
$ 173.90 | |||||
| 47 | 280148 | Thermal Cut-off (includes Illus. 48) |
|
Immediately | $ 54.61 | ||||
| 48 | WP8557403 | Inlet Thermister High Limit Stat (Replaces: 8557403) |
|
Immediately | $ 79.75 | ||||
| 49 | 8544729 | Bracket, Heater Box |
|
- | |||||
| 50 | 8544719 | Blower, Cover (includes No.11) |
|
$ 76.29 | |||||
| 51 | WP3390719 | Thermal Fuse (Replaces: 3390719) |
|
Immediately | $ 31.57 | ||||
| 52 | W11117302 | Grille Outlet (Replaces: 8544723) |
|
Immediately | $ 158.67 | ||||
| 53 | 8563860 | Baffle, Drum |
|
$ 156.50 | |||||
| 54 | WP8557244 | Bulkhead, Front (Replaces: 8557244) |
|
$ 333.57 | |||||
| 55 | 8544718 | Duct, Inlet Blower |
|
$ 72.39 | |||||
| 56 | WPW10130506 | Vale & Hose Assembly (Replaces: W10130506) |
|
$ 334.36 | |||||
| 57 | WPW10129424 | Vale & Bracket Assembly (Replaces: W10129424) |
|
$ 234.96 | |||||
| 58 | W10410316 | Nozzle & Hose Assembly (include Items, 59,60,61 & 62) (Replaces: W10348593) |
|
$ 129.91 | |||||
| 59 | W10347743 | Hose, Nylon (not Servicable Included With Item. 58 ) |
|
- | |||||
| 60 | WPW10277503 | Nozzle & Screen Assembly (Replaces: W10277503) |
|
$ 255.65 | |||||
| 61 | W10044628 | Nut, 9-16 X 24 |
|
$ 97.27 | |||||
| 62 | W10044579 | Washer, Nozzle |
|
$ 9.22 | |||||
| 63 | W10044599 | Clip, Push To Connect |
|
$ 15.00 | |||||
| 64 | W10859554 | Coupling, Hose (Replaces: W10044605) |
|
$ 86.06 | |||||
| 65 | W10160575 | Cover, Myst Valve |
|
- | |||||
| 66 | W10345257 | Sleeve, Tube |
|
- |
