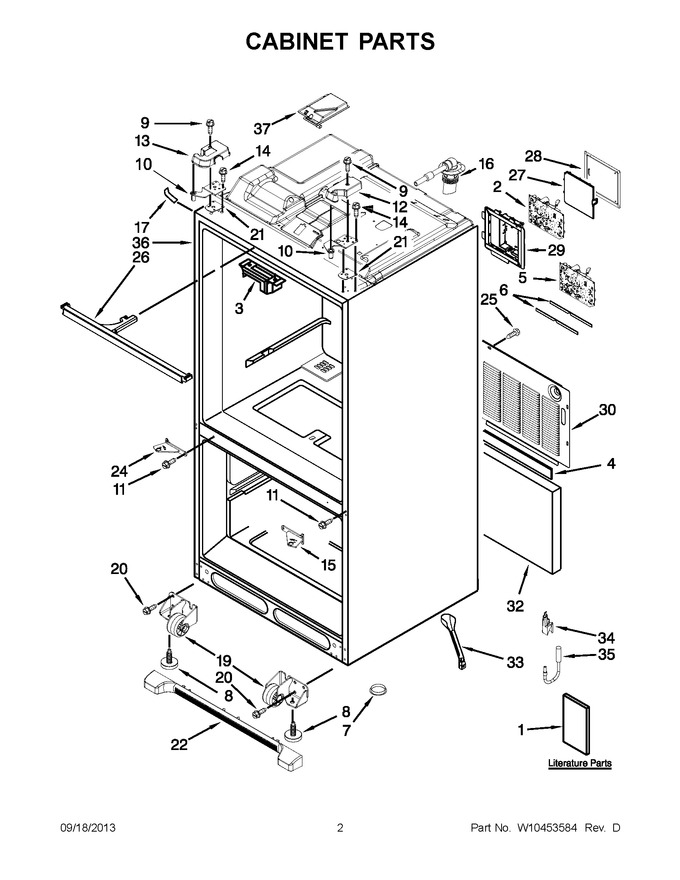

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10423562 | Tech Sheet |
|
- | |||||
| 1 | W10368199 | Tag, Energy |
|
- | |||||
| 1 | W10278586 | Owners Manual |
|
- | |||||
| 2 | WPW10226427 | Control, Electronic Power Supply (Replaces: W10226427) |
|
$ 316.74 | |||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 4 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 5 | WPW10267646 | Board, Control (hv, Gemini) (Replaces: W10267646) |
|
Immediately | $ 336.44 | ||||
| 6 | 12957801K | Gasket, Hv Control Box |
|
- | |||||
| 7 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 8 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | W10319345 | Hinge, Top (left Hand) |
|
- | |||||
| 10 | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 28.71 | ||||
| 11 | W11573362 | Screw, Center Hinge (Replaces: 12992201) |
|
$ 13.25 | |||||
| 12 | W10272998 | Cover, Right Hinge (grey) |
|
- | |||||
| 13 | W10272486 | Cover, Left Hinge (grey) |
|
$ 17.99 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W10917988 | Hinge, Center (rt) (grey) (Replaces: 13000002AP) |
|
Immediately | $ 86.07 | ||||
| 16 | W10213219 | Fill Tube, Icemaker |
|
$ 59.52 | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 19 | W11820444 | Roller Assembly (left Hand) (Replaces: W10275850) |
|
Immediately | $ 33.62 | ||||
| 19 | W11820445 | Roller Assembly (right Hand) (Replaces: W10275849) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | 12999502 | Shim, Hinge (right Hand) |
|
$ 90.54 | |||||
| 21 | 12999501 | Shim, Hinge (left Hand) |
|
$ 89.58 | |||||
| 22 | WPW10534155 | Grille, Toe (grey) (Replaces: W10244558) |
|
Immediately | $ 112.99 | ||||
| 24 | W10917988 | Hinge, Center (lt) (grey) (Replaces: 13000001AP) |
|
Immediately | $ 86.07 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 26 | W10253811 | Cover, Water Line (grey) |
|
- | |||||
| 27 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 76.64 | |||||
| 28 | 12961602 | Cover, Control Box |
|
$ 104.57 | |||||
| 29 | W10159461 | Box, Hv Control |
|
- | |||||
| 30 | WPW10270394 | Cover, Unit (Replaces: W10270394) |
|
$ 187.86 | |||||
| 32 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 33 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 41.61 | ||||
| 34 | W10236761 | Cover, Water Valve |
|
$ 16.11 | |||||
| 35 | W10349052 | Waterline, Household |
|
$ 78.91 | |||||
| 36 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 37 | W10237969 | Sump, Cabinet (grey) |
|
- |
