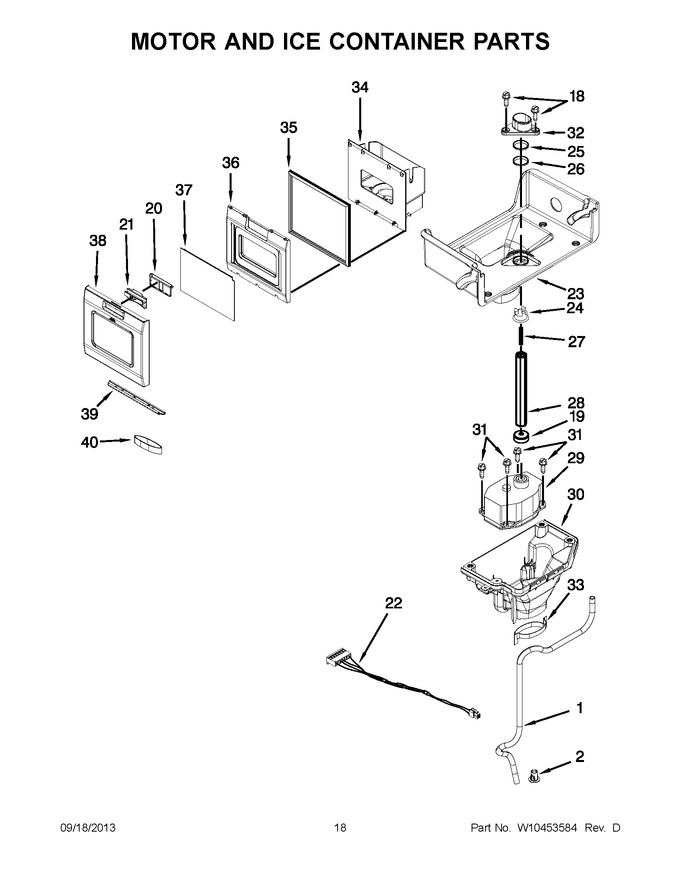

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10245518		Tube, Drain				$ 32.98
2	W10562834		Clip, Tube   (Replaces: W10245516)				$ 15.66
18	WP3400065		Screw (stainless)   (Replaces: 3400065)			Immediately	$ 8.18
19	2323357		Grommet, Drive Shaft				$ 13.40
20	W10215692		Cover, Latch		Appelez-nous	-
21	W10292300		Spring, Latch		Appelez-nous	-
22	W10291014		Harness, Dispenser Motor		Appelez-nous	-
23	W10318539		Cover, Mounting Plate		Appelez-nous	-
24	WP2220458		Coupling, Bottom   (Replaces: 2220458)			Immediately	$ 41.04
25	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 12.57
26	WP2212370		Washer   (Replaces: 2212370)				$ 25.35
27	W10852956		Spring, Coupling   (Replaces: 2198607)			Immediately	$ 21.40
28	W10258592		Shaft, Motor				$ 68.93
29	WP2323603		Dispenser, Motor   (Replaces: 2323603)				$ 376.52
30	W10245601		Housing, Auger Motor		Appelez-nous	-
31	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
32	W10218551		Clip, Shaft		Appelez-nous	-
33	W10247398		Gasket, Motor Box		Appelez-nous	-
34	W10267558		Container, Ice				$ 102.89
35	W10178224		Gasket, Ice Container				$ 205.79
36	W10213615		Eps, Ice Container				$ 32.62
37	W10218689		Window, Ice Container				$ 51.54
38	W10292299		Front, Ice Container				$ 66.92
39	W10248280		Hinge, Ice Bucket		Appelez-nous	-
40	W10166865		Gasket, Chute		Appelez-nous	-
100	W10353202		Container, Ice (complete)				$ 177.63

    View Diagram in Separate Window       Print Part List
