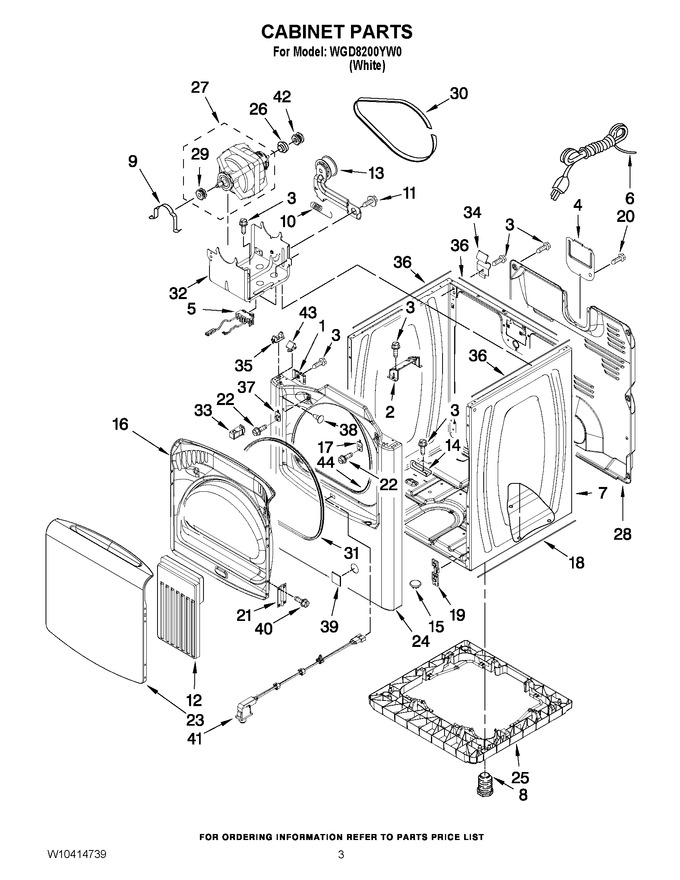

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10007520		Clip, Ground				$ 30.94
2	8544753		Bracket, Burner		Appelez-nous	-
3	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.82
4	W11736322		Plate, Cover Terminal Block   (Replaces: 8558833)		Appelez-nous	-
5	WPW10411937		Switch, Broken Belt   (Replaces: W10314253)			Immediately	$ 34.34
6	W11222083		Cord, Power   (Replaces: 344020)				$ 120.59
7	W10223154		Cabinet   (Replaces: W10183827)				$ 337.50
8	49621		Foot-optional (extended Length) (package Of 2) (not Included.)   (Replaces: 279810)			Immediately	$ 8.55
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	8558850		Filler, Door		Appelez-nous	-
13	WPW10547292		Pulley Assembly   (Replaces: 8547160)			Immediately	$ 43.98
14	W10201446		Bracket-gas Pipe		Appelez-nous	-
15	8578560		Plug-hole				$ 91.37
16	8571356		Door Inner				$ 86.30
17	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 28.28
18	WPW10224768		Seal-spill Guard   (Replaces: W10224768)				$ 72.09
19	W10854425		Clip, Front Panel (2)   (Replaces: 3394083)			Immediately	$ 15.56
20	W10850756		Screw   (Replaces: 8533974)				$ 7.76
21	WP8565018		Assembly, Hinge (2)   (Replaces: 8579717)				$ 109.85
22	WP3400805		Screw   (Replaces: 3400805)				$ 7.19
23	WP8571361		Door, Outer   (Replaces: 8571361)				$ 174.73
24	W10111883		Panel, Front		Appelez-nous	-
25	W10363887		Riser-full		Appelez-nous	-
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
27	WPW10448896		Motor, Assembly 60 Hz.   (Replaces: 8547170)			Immediately	$ 326.75
28	8558830		Panel, Rear				$ 139.44
29	8544743		Pulley, Blower				$ 74.26
30	WP8547157		Belt, Drive   (Replaces: 8547157)			Immediately	$ 65.46
31	W10239307		Seal, Door   (Replaces: W10221653)				$ 134.54
32	8547158		Bracket, Motor				$ 65.31
33	WPW10111905		Catch, Door Assembly   (Replaces: W10111905)			Immediately	$ 7.59
34	WP8066217		Hinge, Top   (Replaces: 238088)				$ 7.82
35	WP8568303		Locator, Snap Down (2)   (Replaces: 8568303)				$ 7.56
36	WPW10157932		Foam, Cabinet   (Replaces: W10157932)			Immediately	$ 8.05
37	W10295405		Assembly, Strike & Plate   (Replaces: W10111906)				$ 109.61
38	W10144494		Plug, Hole				$ 35.14
39	W10811916		Plug, Front Panel   (Replaces: 8564457)				$ 15.71
40	WP488627		Screw, 8-18 X 18   (Replaces: 342055)				$ 7.57
41	W10128087		Door Switch Assembly				$ 90.98
42	WP8547171		Pulley, Drum Motor   (Replaces: 8547171)				$ 142.53
43	WP8576625		Lock, Top Front   (Replaces: 8576625)				$ 7.60
44	W10044490		Seal, Front Panel				$ 32.43
