SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts

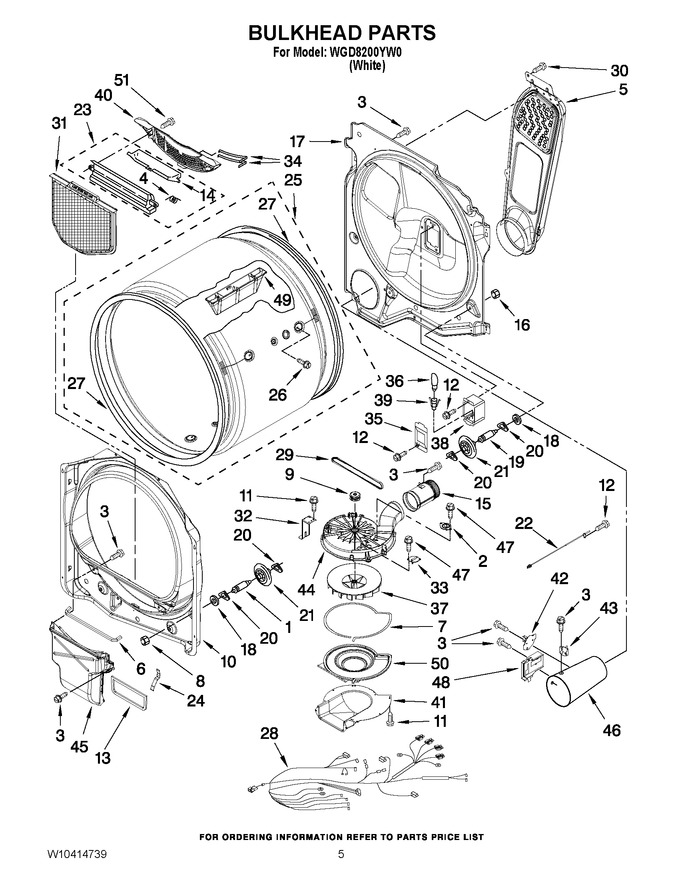

03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, Drum Roller (r.h.) Thread   (Replaces: W10359271)			Immediately	$ 62.21
2	WP8577274		Thermistor, Blower Housing   (Replaces: 8577274)			Immediately	$ 43.61
3	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
4	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 84.59
5	W10385948		Air Duct Assembly				$ 132.94
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.97
7	WP8573068		Seal, Blower Cover   (Replaces: 8573068)				$ 88.17
8	W11812294		Nut,3/8 X 16(r.h.)   (Replaces: 3934666)				$ 12.16
9	WP8544739		Pulley, Blower   (Replaces: 8544739)				$ 126.92
10	WP8557244		Bulkhead, Front   (Replaces: 8557244)				$ 317.69
11	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.75
12	WP488729		Screw, 8-18 X.500   (Replaces: 3390647)			Immediately	$ 7.79
13	8544721		Seal, Lint Duct				$ 5.65
14	W11222846		Door, Lint Screen   (Replaces: 3394984)			Immediately	$ 203.72
15	8544755		Exhaust Pipe				$ 43.67
16	WPW10080190		Nut, 3/8-16 (l.h.)   (Replaces: W10001120)			Immediately	$ 8.49
17	8557234		Bulkhead, Rear				$ 181.14
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 14.03
19	WPW10359272		Shaft, Drum Roller (l.h.) Thread   (Replaces: W10359272)			Immediately	$ 58.48
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: W10314171)			Immediately	$ 28.50
22	WPW10419068		Inlet, Gas Thermistor   (Replaces: W10010370)				$ 99.48
23	W11129408		Outlet Housing Assembly   (Replaces: 3394985)			Immediately	$ 53.28
24	8573070		Clip, Lint Duct				$ 12.41
25	W10549614		Complete Drum Assembly   (Replaces: 8557269)				$ 476.58
26	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.00
27	280140		Seal, Drum   (Replaces: W10116344)			Immediately	$ 73.88
28	W10393458		Harness, Gas		Appelez-nous	-
29	WP8544742		Belt, Blower   (Replaces: 8544742)			Immediately	$ 55.00
30	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
31	W10120998		Lint Screen   (Replaces: W10049370)				$ 67.16
32	8544741		Bracket, Housing Blower (2)				$ 38.71
33	WP3390719		Thermal Fuse   (Replaces: 3390719)			Immediately	$ 31.57
34	WP3387223		Electrode, Sensor   (Replaces: 3387223)			Immediately	$ 6.17
35	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 31.09
36	WP22002263		Bulb, Light   (Replaces: 3406124)			Immediately	$ 13.66
37	WP8544737		Wheel, Blower   (Replaces: 8544737)			Immediately	$ 147.47
38	3977373		Bracket, Light				$ 105.79
39	W11222979		Socket Assembly   (Replaces: W10214261)			Immediately	$ 113.13
40	W11117302		Grille Outlet   (Replaces: 8544723)			Immediately	$ 158.67
41	8544718		Duct, Inlet Blower				$ 72.39
42	WP8573713		Thermal, Cut-off   (Replaces: 8573713)			Immediately	$ 72.51
43	WP8573028		Thermostat, High-limit   (Replaces: 8573028)				$ 107.87
44	W10256512		Housing, Blower				$ 70.10
45	8544786		Lint Duct Assembly				$ 91.17
46	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 176.47
47	3350424		Screw				$ 12.11
48	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
49	8563860		Baffle, Drum				$ 149.05
50	8544719		Cover, Blower (includes No.7)				$ 76.29
51	WP3387230		Screw, 10-16 X 13/16   (Replaces: 3387230)			Immediately	$ 8.54
