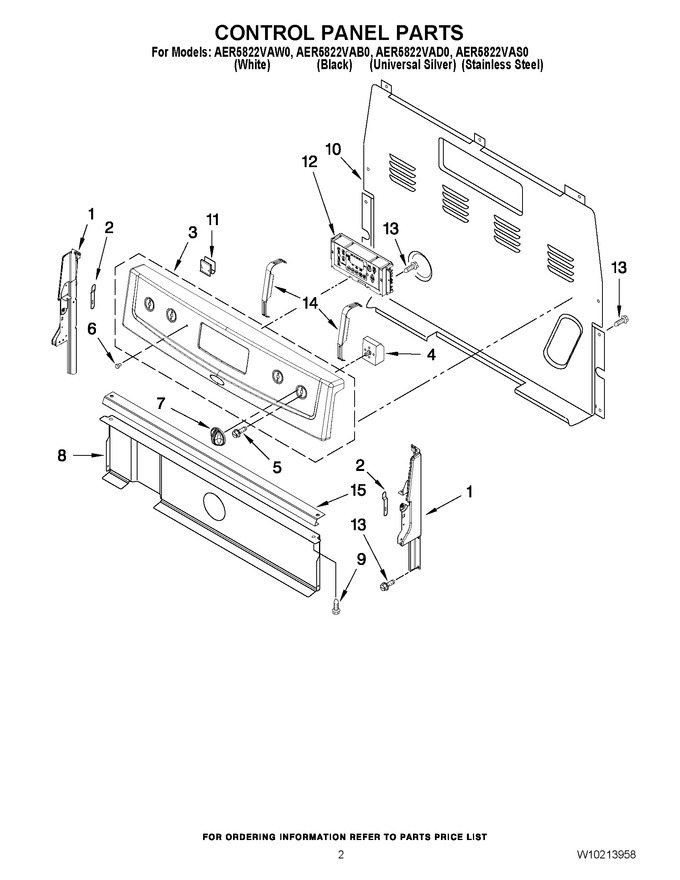

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Left Hand)   (Replaces: W10009040)				$ 42.45
1	W11219370		Endcap (white Right Hand)   (Replaces: W10009050)				$ 60.83
1	W11219664		Endcap (black Left Hand)   (Replaces: W10009080)				$ 153.83
1	W11219665		Endcap (black Right Hand)   (Replaces: W10009090)				$ 45.17
2	3196200		Clip, Spring				$ 10.45
3	W10170011		Panel, Console (white)		Appelez-nous	-
3	W10170013		Panel, Console (universal Silver)		Appelez-nous	-
3	W10170014		Panel, Console (stainless Steel)				$ 214.40
3	W10170012		Panel, Console (black)		Appelez-nous	-
4	5500-287		Switch, Infinite (lr/rr (silver))   (Replaces: 3148951)			Immediately	$ 52.39
4	WP3149400		Switch, Infinite (lf/rf (orange))   (Replaces: 3148954)			Immediately	$ 90.51
5	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 6.26
7	W10119705		Knob, Infinite (white)			Immediately	$ 53.17
7	W10119706		Knob, Infinite (black)				$ 52.90
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	3196166		Screw				$ 7.36
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 219.04
11	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
12	W10173504		Control, Range (white)		Appelez-nous	-
12	W10173505		Control, Range (black & Stainless)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	W11230932		Brkt, Mntg Eoc   (Replaces: W10138683)			Immediately	$ 84.81
15	W10525121		Brkt-mntg, Console   (Replaces: W10182322)				$ 98.85
