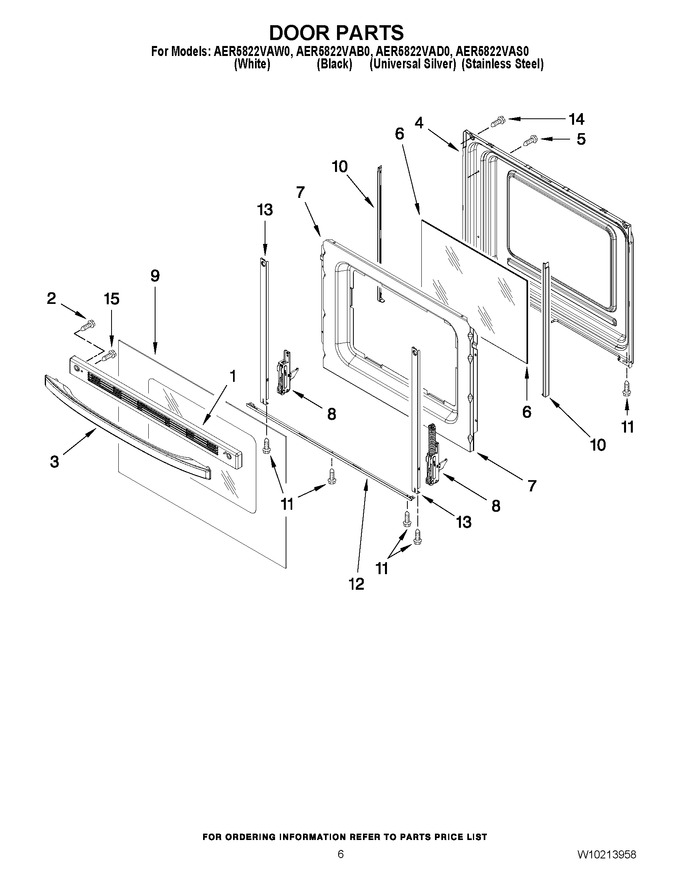

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Vent, Top (black) (Replaces: W10144870) |
|
Immediately | $ 175.37 | ||||
| 1 | W10817433 | Vent, Top (white) (Replaces: W10144869) |
|
Immediately | $ 103.27 | ||||
| 2 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 3 | W10144888 | Handle, Door (white) |
|
$ 100.10 | |||||
| 3 | W10144889 | Handle, Door (black) |
|
$ 102.17 | |||||
| 3 | W10144890 | Handle, Door (stainless Steel) |
|
$ 101.38 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | WP8053948 | Window, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | W11685635 | Retainer, Insul. (Replaces: 9761501) |
|
$ 188.29 | |||||
| 8 | WPW10299225 | Hinge, Door Active - (white, Black) (Replaces: W10299225) |
|
Immediately | $ 52.34 | ||||
| 8 | WPW10299224 | Hinge, Door Active - (silver) (Replaces: W10299224) |
|
Immediately | $ 73.47 | ||||
| 8 | WPW10299227 | Hinge, Door (passive (all Models)) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 8 | WPW10299226 | Hinge, Door Active - (stainless) (Replaces: W10299226) |
|
Immediately | $ 72.76 | ||||
| 9 | W10144884 | Glass, Outer (stainless (includes Ss Panel)) |
|
- | |||||
| 9 | WPW10118455 | Glass, Outer (black) (Replaces: W10118455) |
|
Immediately | $ 332.70 | ||||
| 9 | WPW10118454 | Glass, Outer (white) (Replaces: W10118454) |
|
$ 324.91 | |||||
| 10 | WP8523172 | Trim, Side (white Left Hand) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 10 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 10 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 10 | WP8523166 | Trim, Side (white Right Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 11 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 12 | W10067550 | Trim, Lower (silver) |
|
- | |||||
| 12 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 12 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 13 | W11502236 | Strap Door (Replaces: W10113759) |
|
Immediately | $ 27.68 | ||||
| 14 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 15 | WP3400074 | Screw (Replaces: W10178143) |
|
$ 7.55 |
