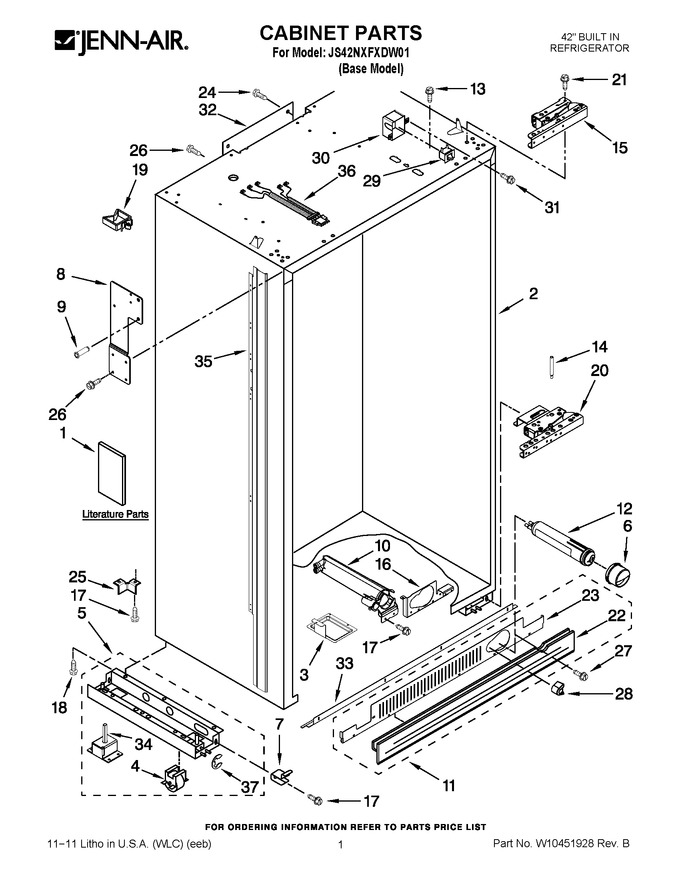

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10234135		Service & Wiring Sheet		Appelez-nous	-
1	W10303992		Use & Care Guide		Appelez-nous	-
1	W10246792		Energy Guide		Appelez-nous	-
1	W10379136		Installation Instructions		Appelez-nous	-
1	W10234151		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
1	W10234149		Main Control Service Sheet		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	2318189		Tray, Drip Filter				$ 148.73
4	WPW10138054		Roller, Front & Rear   (Replaces: W10138054)				$ 45.34
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: W10138423)			Immediately	$ 383.00
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: W10138425)				$ 381.83
6	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 28.26
7	W10839844		Mounting Stud, Grille   (Replaces: 2307640)				$ 43.26
8	W10188500		Support, Grille (rh)				$ 115.89
8	W10188499		Support, Grille (lh)				$ 66.70
9	WPW10121451		Nutsert, Support   (Replaces: W10121451)			Immediately	$ 8.03
10	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
11	W10182713		Grille Kit Assy (includes 22 & 23)			Immediately	$ 163.33
12	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
13	WP489399		Screw   (Replaces: 489399)				$ 7.30
14	W10234202		Pin-stop, Door				$ 91.73
15	W10167398		Hinge (top) (fc)				$ 407.94
15	W10167397		Hinge (top) (rc)				$ 557.77
16	W11755873		Bracket, Mount (water Filter)   (Replaces: W10348782)				$ 80.33
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
18	W11624204		Screw   (Replaces: 486194)				$ 14.72
19	W10129069		Wire Clip		Appelez-nous	-
20	W10182693		Hinge (bottom) (fc)				$ 351.61
20	W10182692		Hinge (bottom) (rc)				$ 383.88
21	W11721628		Screw 1/4-20 X 5/8   (Replaces: 8533913)			Immediately	$ 14.78
22	WPW10188549		Skirt-grille, Bottom   (Replaces: W10188549)				$ 144.20
23	W11739147		Grille Bottom, Front   (Replaces: W10182717)			Immediately	$ 212.42
24	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
25	2006617		Bracket, Support Base (rear)		Appelez-nous	-
26	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
27	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
28	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 76.42
29	W11384469		Switch, Rocker Arm   (Replaces: C3680314)			Immediately	$ 39.09
30	W10167387		Cover, Switch (lh)				$ 77.58
30	W10167341		Cover, Switch (rh)				$ 77.09
31	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
32	2215612		Cover, Rear		Appelez-nous	-
33	WPW10250962		Grille Trim (top)   (Replaces: W10250962)				$ 133.61
34	2005032		Leveler Assy			Immediately	$ 200.07
35	W10344544		Side Trim Assy (rh)				$ 118.24
35	W10344547		Side Trim Assy (lh)				$ 122.36
36	W10209510		Wire Assembly Rc/fc Light Switch		Appelez-nous	-
37	2006841		Ring, Retainer				$ 92.66
