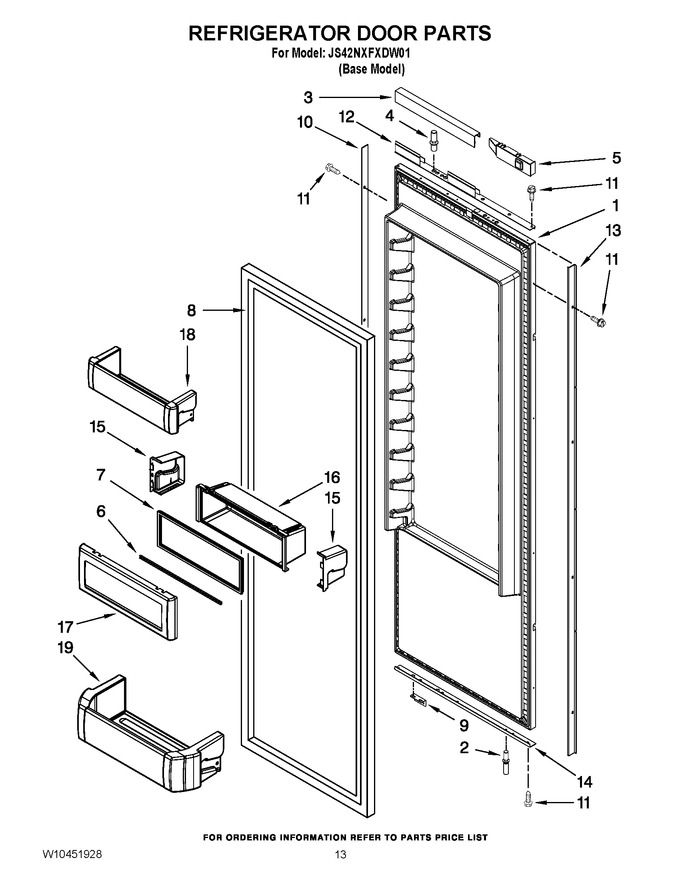

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167382		Refrigerator Door (includes No.8)		Appelez-nous	-
2	W11337869		Pin-door, Bottom   (Replaces: W10234206)				$ 64.91
3	W10199873		Cover-door, Top				$ 141.97
4	W10234194		Pin-door, Top				$ 17.66
5	W10197748		Insert-door, Arm (top)				$ 18.83
5	W10197766		Insert-door, Arm (bottom)				$ 17.26
6	W11448696		Rail, Lid   (Replaces: 2222796)				$ 153.99
7	W11448696		Gasket, Utility Bin   (Replaces: 2222982)				$ 153.99
8	WP2266902		Door Gasket, Magnetic   (Replaces: 2222811)				$ 330.30
9	W10199955		Bracket Panel Mounting				$ 93.88
10	W10167367		Trim-door (handle Side)				$ 73.26
11	W10825422		Screw, 8-15 X .500 (stainless Steel)   (Replaces: 8281251)				$ 11.36
12	W10182683		Trim-door, Top		Appelez-nous	-
13	W10182685		Trim-door, (hinge Side)		Appelez-nous	-
14	W10182690		Trim-door, Btm		Appelez-nous	-
15	WPW10323172		End Cap (rh)   (Replaces: W10323172)				$ 8.60
15	WPW10323173		End Cap (lh)   (Replaces: W10323173)				$ 8.60
16	W11448696		Bin, Utility Center   (Replaces: W10323036)				$ 153.99
17	W11553221		Door, Utility Bin   (Replaces: 2257616)			Immediately	$ 69.64
18	W10323599		Bin, Door				$ 146.61
19	W10323747		Bin, Door				$ 145.36
