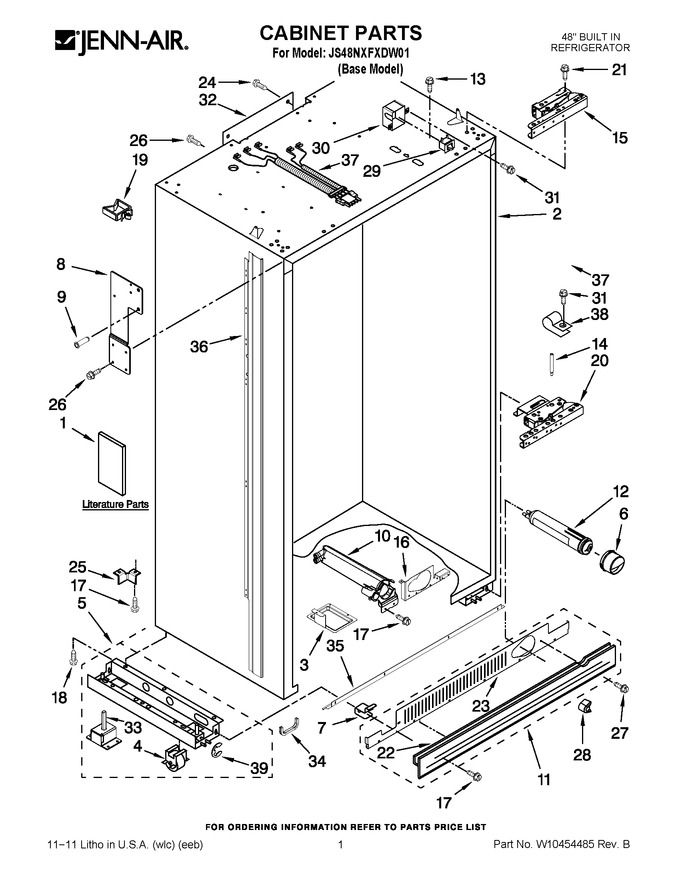

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10234149 | Main Control Service Sheet |
|
- | |||||
| 1 | W10379136 | Installation Instructions |
|
- | |||||
| 1 | W10303992 | Use & Care Guide |
|
- | |||||
| 1 | W10246794 | Energy Guide |
|
- | |||||
| 1 | W10234135 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10234151 | Icemaker And Ingredient Care Center Service Sheet |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | 2318189 | Tray, Drip Filter |
|
$ 148.73 | |||||
| 4 | WPW10138054 | Roller, Front & Rear (Replaces: W10138054) |
|
$ 45.34 | |||||
| 5 | W10860229 | Support, Leveler Assembly (freezer Side) (Replaces: W10279275) |
|
$ 381.83 | |||||
| 5 | W10860448 | Support, Leveler Assembly (refrigerator Side) (Replaces: W10138423) |
|
Immediately | $ 383.00 | ||||
| 6 | WP2260518B | Cap, Water Filter (black) (Replaces: 2260518B) |
|
Immediately | $ 28.26 | ||||
| 7 | W10839844 | Mounting Stud, Grille (Replaces: 2307640) |
|
$ 43.26 | |||||
| 8 | W10188499 | Support, Grille (lh) |
|
$ 66.70 | |||||
| 8 | W10188500 | Support, Grille (rh) |
|
$ 115.89 | |||||
| 9 | WPW10121451 | Nutsert, Support (Replaces: W10121451) |
|
Immediately | $ 8.03 | ||||
| 10 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 171.96 | ||||
| 11 | W10182714 | Grille Kit Assy Includes (22 & 23) |
|
$ 219.21 | |||||
| 12 | EDR3RXD1B | Filter, Water (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 13 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 14 | W10234202 | Pin-stop, Door |
|
$ 91.73 | |||||
| 15 | W10167398 | Hinge (top) (fc) |
|
$ 407.94 | |||||
| 15 | W10167397 | Hinge (top) (rc) |
|
$ 557.77 | |||||
| 16 | W11755873 | Bracket, Mount (water Filter) (Replaces: W10348782) |
|
$ 80.33 | |||||
| 17 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 18 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 19 | W10129069 | Wire Clip |
|
- | |||||
| 20 | W10182693 | Hinge (bottom) (fc) |
|
$ 351.61 | |||||
| 20 | W10182692 | Hinge (bottom) (rc) |
|
$ 383.88 | |||||
| 21 | W11721628 | Screw 1/4-20 X 5/8 (Replaces: 8533913) |
|
Immediately | $ 14.78 | ||||
| 22 | W10859915 | Skirt-grille, Bottom (Replaces: W10188551) |
|
$ 249.29 | |||||
| 23 | W11739148 | Grille Bottom, Front (Replaces: W10182718) |
|
$ 214.59 | |||||
| 24 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 25 | 2006617 | Bracket, Support Base (rear) |
|
- | |||||
| 26 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 27 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 28 | WP2260503B | Button, Filter (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 29 | W11384469 | Switch, Rocker Arm (Replaces: C3680314) |
|
Immediately | $ 39.09 | ||||
| 30 | W10167341 | Cover, Switch (rh) |
|
$ 77.09 | |||||
| 30 | W10167387 | Cover, Switch (lh) |
|
$ 77.58 | |||||
| 31 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 32 | 2215612 | Cover, Rear |
|
- | |||||
| 33 | 2005032 | Leveler Assy |
|
Immediately | $ 200.07 | ||||
| 34 | 2307584 | Grommet Crossover Tube |
|
$ 23.40 | |||||
| 35 | WPW10250963 | Grille Trim Top (Replaces: W10250963) |
|
$ 126.27 | |||||
| 36 | W10344547 | Side Trim Assy (lh) |
|
$ 122.36 | |||||
| 36 | W10344544 | Side Trim Assy (rh) |
|
$ 118.24 | |||||
| 37 | W10209510 | Wire Assembly Rc/fc Light Switch |
|
- | |||||
| 38 | 549193 | Clamp |
|
$ 14.06 | |||||
| 39 | 2006841 | Ring, Retainer |
|
$ 92.66 |
