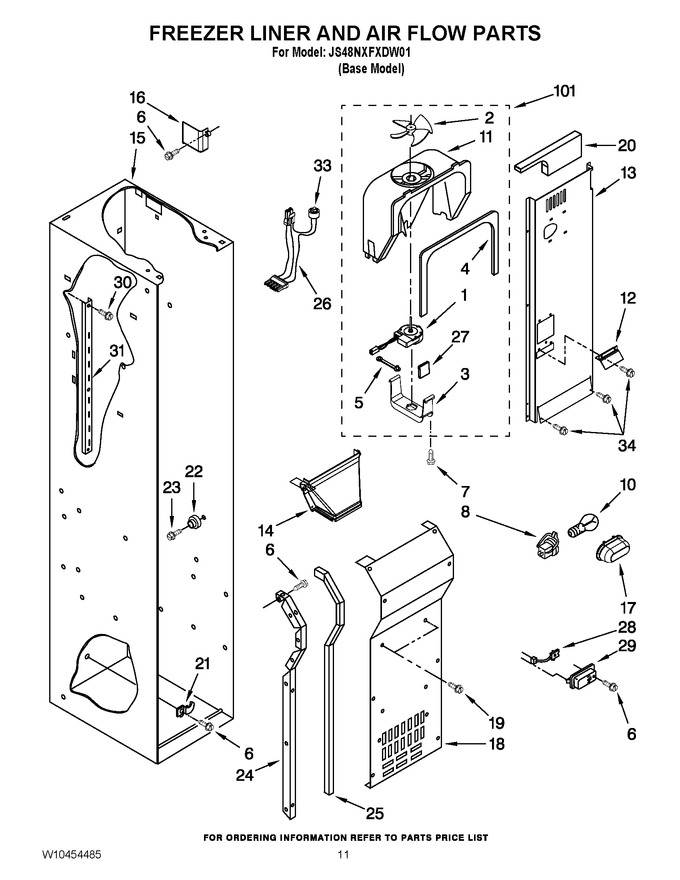

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259385 | Fan Motor |
|
$ 84.74 | |||||
| 2 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 3 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 159.27 | |||||
| 4 | W10203260 | Gasket, Cover |
|
$ 75.47 | |||||
| 5 | W11669856 | Grommet (Replaces: W10449920) |
|
Immediately | $ 15.93 | ||||
| 6 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 7 | WPW10141604 | Screw, Ground (Replaces: W10141604) |
|
$ 8.85 | |||||
| 8 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.80 | |||||
| 10 | W10203262 | Scroll Assy, Fan |
|
- | |||||
| 10 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 11 | W10170114 | Scroll, Fan |
|
- | |||||
| 12 | 2266801 | Deflector, Air |
|
- | |||||
| 13 | W10170085 | Air Duct |
|
- | |||||
| 14 | W10170112 | Cover, Fan Scroll |
|
- | |||||
| 15 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 16 | W10170101 | Cover, Air Outlet |
|
- | |||||
| 17 | 2307751 | Light Shield |
|
$ 17.27 | |||||
| 18 | W10140156 | Cover, Evaporator |
|
- | |||||
| 19 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 20 | 2266801 | Deflector, Air Duct |
|
- | |||||
| 21 | 1112260 | Support, Evaporator |
|
- | |||||
| 22 | W11527119 | Shelf, Stud (Replaces: W10173127) |
|
- | |||||
| 23 | W10191952 | Screw |
|
$ 5.65 | |||||
| 24 | W10135766 | Evaporator, Cover Rail (lh) |
|
- | |||||
| 24 | W10141474 | Evaporator, Cover Rail (rh) |
|
- | |||||
| 25 | 2220904 | Gasket Evaporator Cover |
|
$ 23.55 | |||||
| 26 | W10139189 | Harness, Evap Fan (includes Item 33) |
|
$ 168.77 | |||||
| 27 | W10267707 | Insulation |
|
- | |||||
| 28 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 29 | WP2317844 | Cover, Thermistor (Replaces: 2317105) |
|
$ 11.38 | |||||
| 30 | W10678207 | Screw (Replaces: 2001377) |
|
$ 16.43 | |||||
| 31 | W10213473 | Ladder, Shelf |
|
- | |||||
| 33 | WPW10160570 | Defrost, Bi-metal (Replaces: W10160570) |
|
Immediately | $ 138.98 | ||||
| 34 | WPW10142283 | Screw (Replaces: W10142283) |
|
$ 10.33 |
