SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts

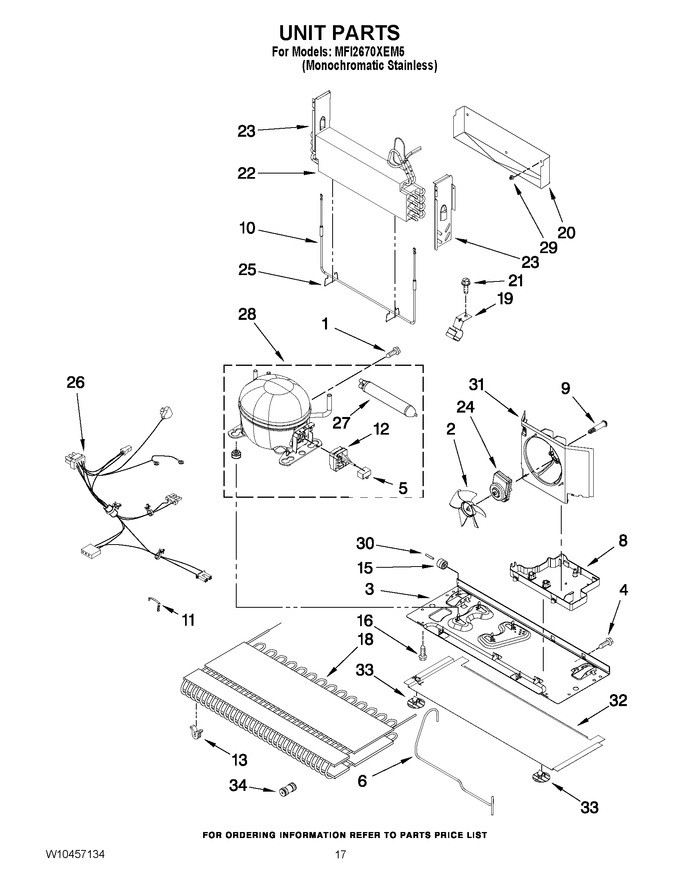

09 - Unit Parts


10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W11727651		Basepan   (Replaces: W10210985)				$ 110.55
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
5	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
6	W10242974		Tube, Discharge				$ 86.99
8	WPW10655368		Pan, Drain   (Replaces: W10296785)			Immediately	$ 99.03
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 13.28
10	WP12729123		Heater, Defrost   (Replaces: 12729123)				$ 191.44
11	W10204187		Strap, Bale		Appelez-nous	-
12	WPW10197428		Start Device   (Replaces: W10197428)			Immediately	$ 89.21
13	WPW10137529		Grommet, Cond. (4)   (Replaces: W10137529)				$ 8.76
15	12477102		Roller (2)			Immediately	$ 7.38
16	12992101		Screw		Appelez-nous	-
18	WPW10346415		Condenser   (Replaces: W10135026)				$ 352.15
19	W10281329		Clip, Drier				$ 13.73
20	W11547653		Tray, Drip   (Replaces: W10292803)				$ 57.02
21	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
22	W11536253		Evaporator   (Replaces: W10313899)				$ 263.22
23	12963102SP		Dam (right Side)		Appelez-nous	-
23	12963002SP		Dam (left Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: W10239053)			Immediately	$ 143.68
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	W10402006		Harness-unit (incl.power Cord)		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	WPW10466675		Compressor (includes Items 11,12,17,27)   (Replaces: W10391109)				$ 834.53
29	10623002		Clip, Evaporator				$ 12.11
30	67006434		Axle, Roller (2)   (Replaces: 12477202)			Immediately	$ 7.90
31	W11556315		Shroud   (Replaces: W10189184)				$ 83.64
32	W10367416		Extension, Basepan		Appelez-nous	-
33	W10206339		Fastener-basepan				$ 11.22
34	WPW10334458		Connector-water   (Replaces: W10334458)				$ 22.67
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (5.25 Ozs. (r-134a))		Appelez-nous	-
